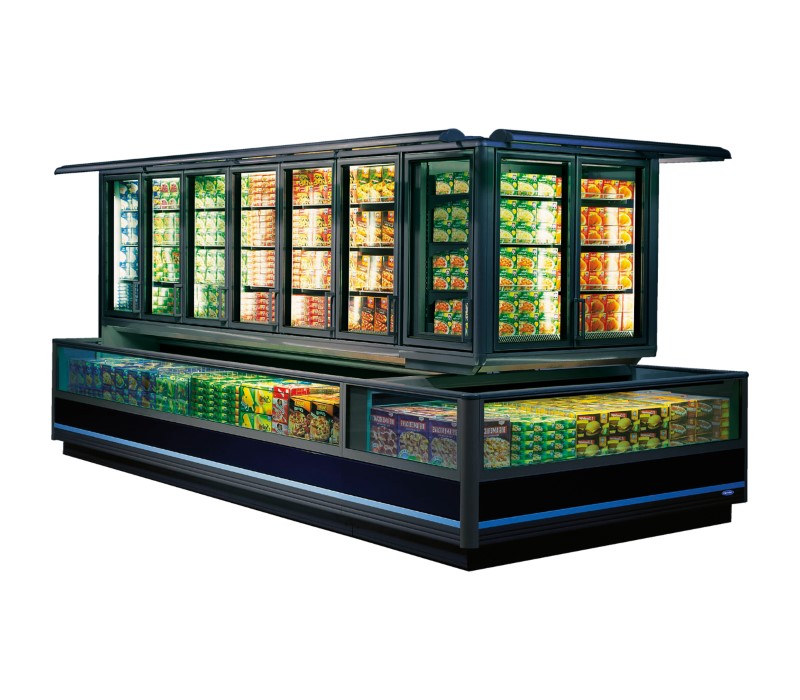

E5 Vantis® SG4-AF Freezer
E5 Vantis® SG4-AF Freezer - Image 2

E5 Vantis® SG4-AF Freezer

E5 Vantis® SG4-AF Freezer

Flexible freezer combination for a wide range of products

  • Horizontal and vertical product presentation
  • Large bottom storage capacity
  • Flexibility in frozen food display

  • SYSTEM:

    Remote

  • TEMP. RANGE:

    L2

  • REFRIGERANT:

    R744 (CO2),

    F-Gas

  • ENERGY LABEL:

Some features may not be part of the standard equipment.

E5 Vantis® AF brings flexibility – both in the layout of the sales area and in the product range. It combines the advantages of an island with those of a vertical freezer cabinet.

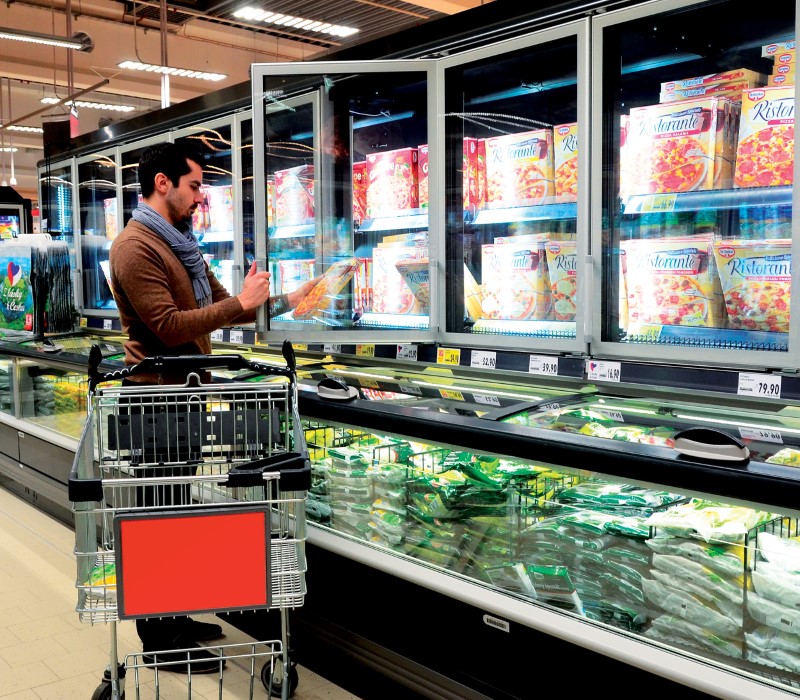

Bagged and bulk goods are preferably presented in the island area, while stacked merchandise is displayed at customer eye level on the upper shelf section.

Heat-reflecting coatings on the inner glass panes and a special gas filling contribute to keep the doors free from condensation and dry on the customer side.

Key Features

Standard Features

  • Anti-Fog (AF) doors, non-heated (passive)
  • Low energy cabinet frame with glass fiber reinforced plastic for reduced energy consumption (High Efficiency Frame, HEF version)
  • Ergonomic door handles
  • Vertical LED lighting for mullions (upper section)
  • Wire shelves with rods front-back (upper section)
  • Push-2 glass lid system (lower section)
  • Single piece kickplates
  • Energy efficient EC fans

Optional Features

  • Panorama or non-glazed endwalls
  • Horizontal LED lighting for handrail
  • Plinth bumpers for increased protection
  • Large selection of wire shelves, product dividers and price rails
  • Wide range of exterior and interior colors
  • Bottom evaporator (CO₂)

Dimensions

Dimensions (mm)

Height outside: 2040 (S-height) / 2200 (L-height)

Depth outside: 1070

Depth inside, island part: 800

Max. loadline, island part: 340

Max. height inside, upper part: 870 (S-height) / 1050 (L-height)

Bottom shelf depth, upper part: 430

Module lengths: 1875 / 2500 / 3750
