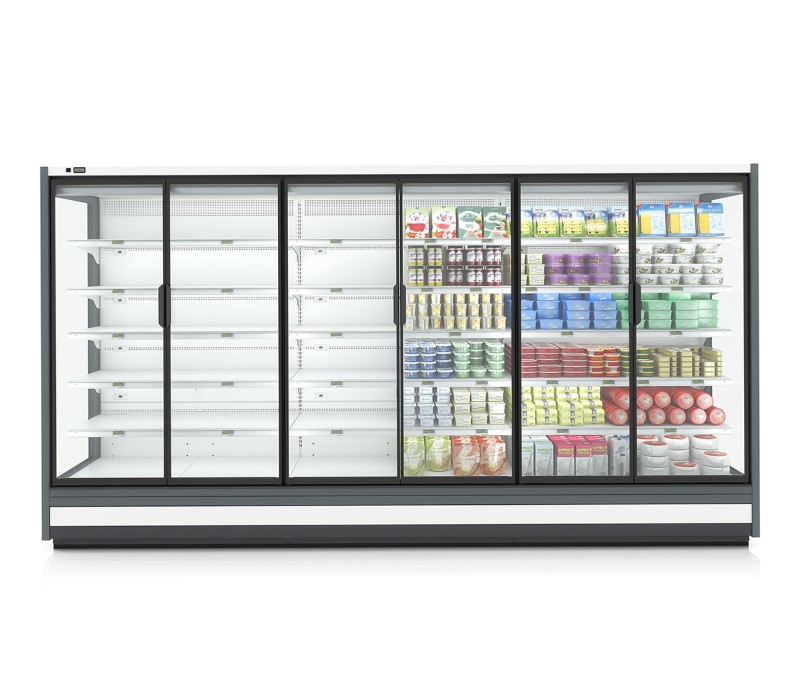

E6 Methos GD

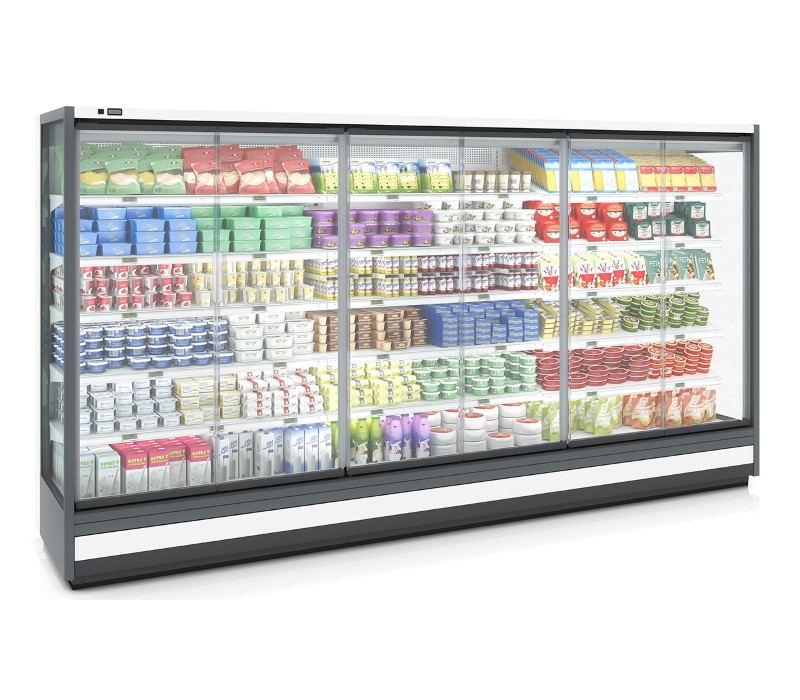

E6 Methos GD - Image 2

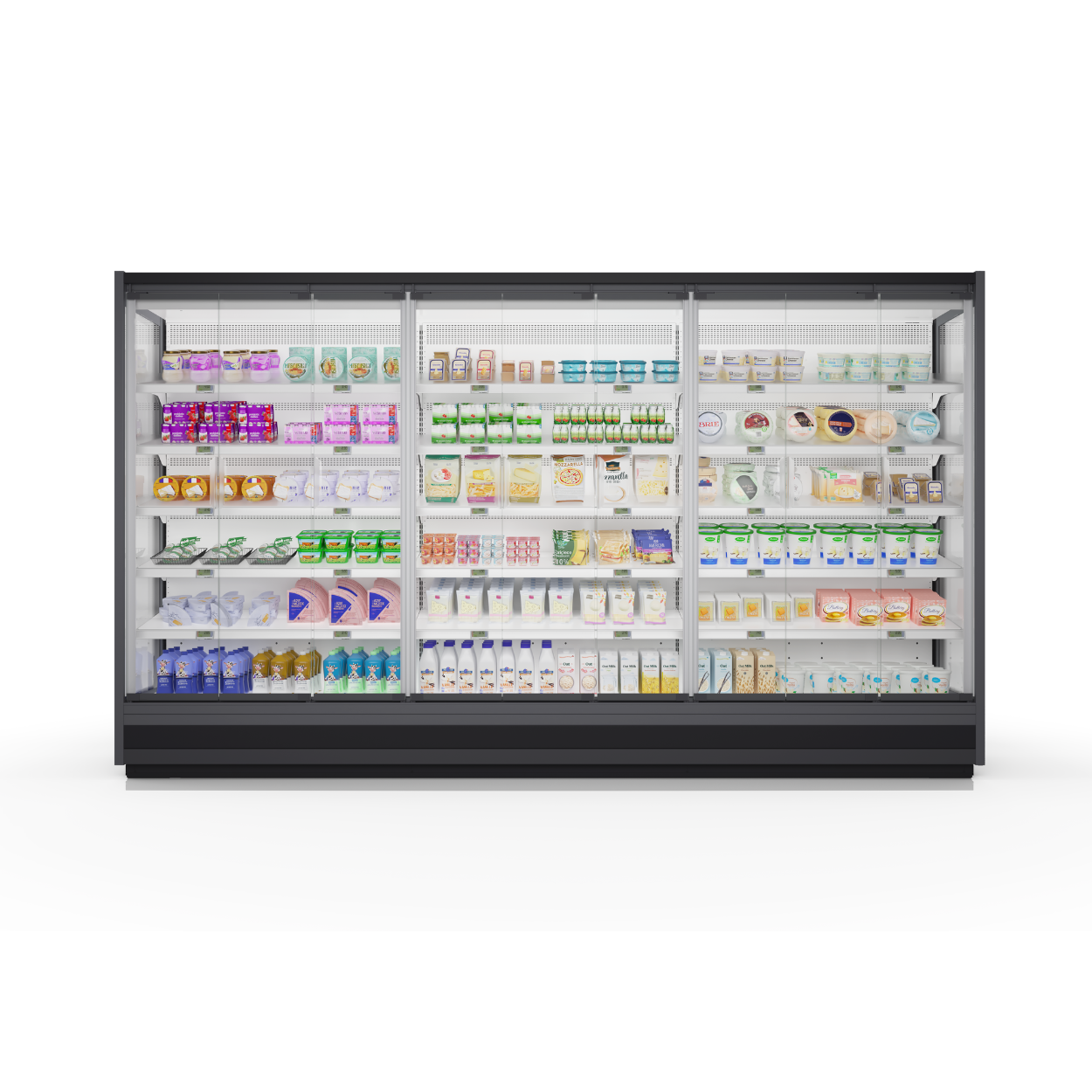

E6 Methos GD - Image 3

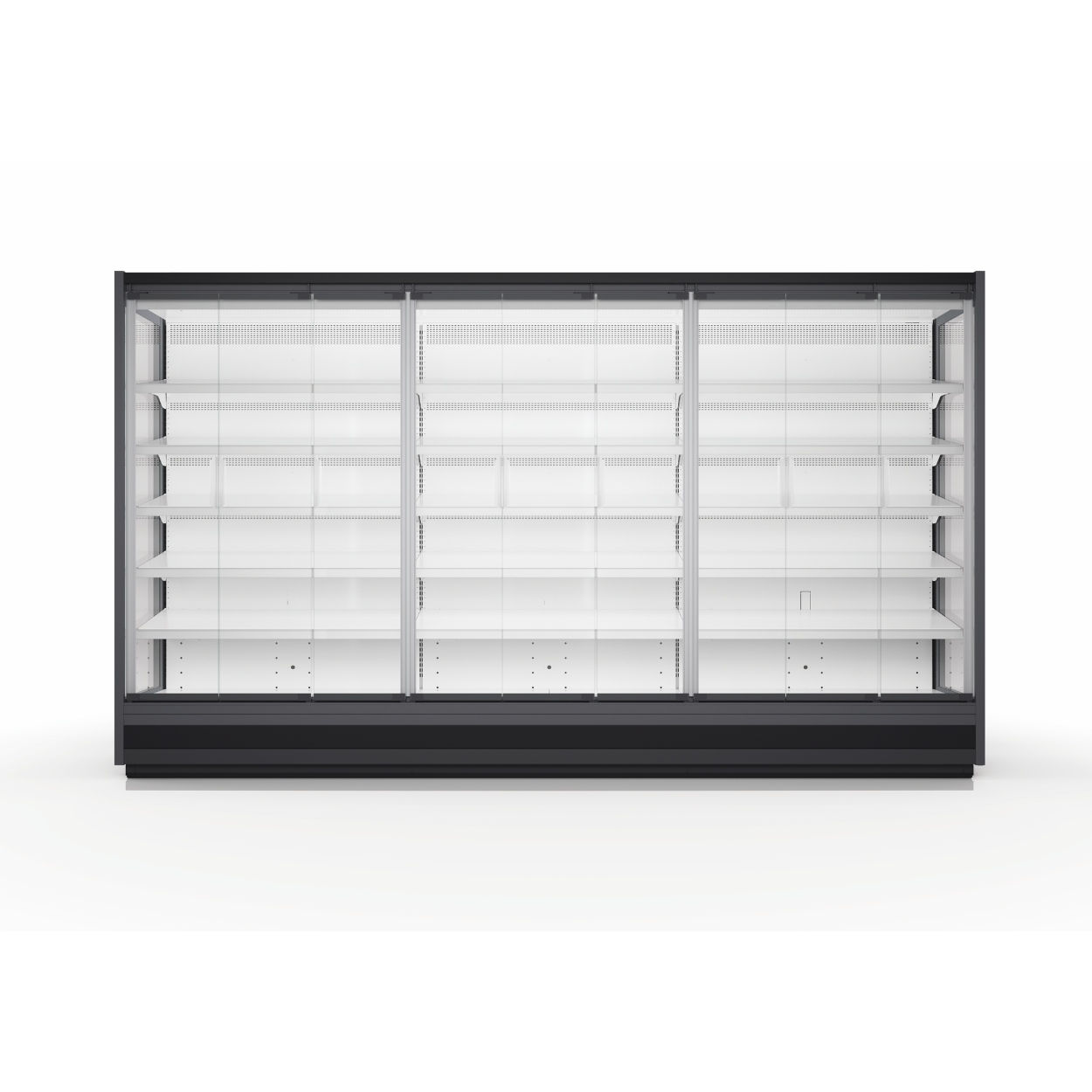

E6 Methos GD - Image 4

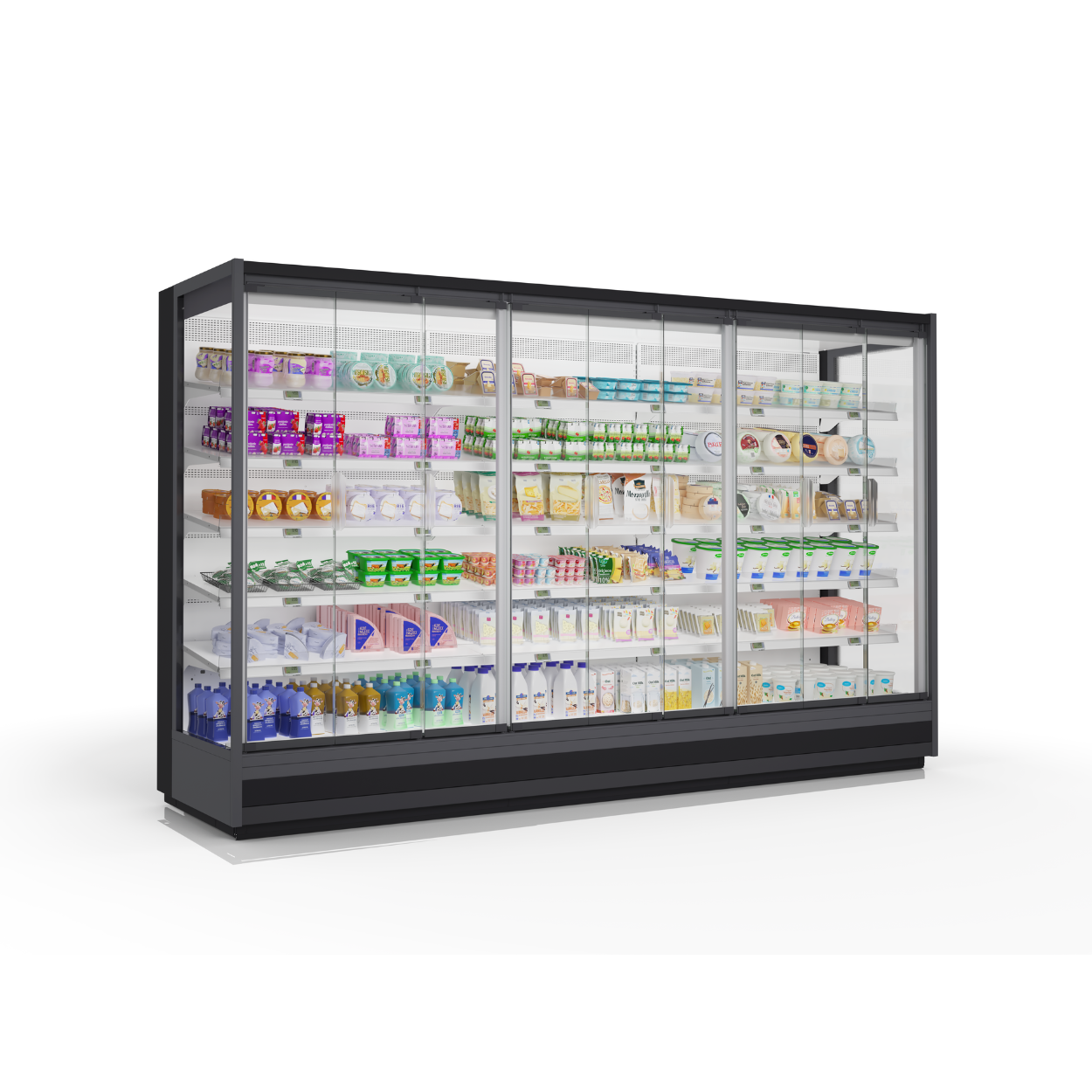

E6 Methos GD

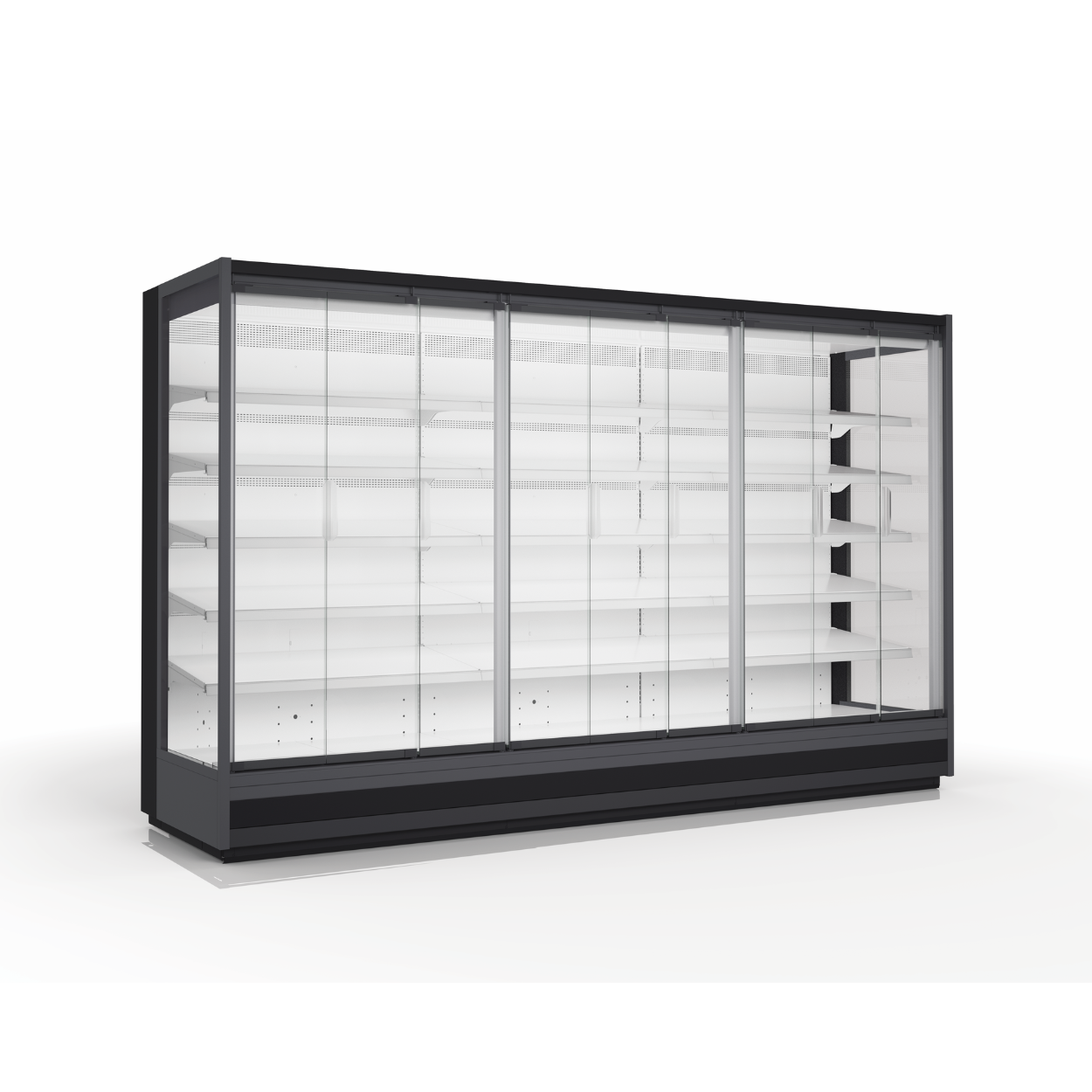

E6 Methos GD

Closed multideck with an optimized footprint and best customizable design

BENEFITS AT A GLANCE

  • Highest footprint productivity*
  • Largest selection of configurations*
  • Optimized design for back-to-back installation
  • Easy access of evaporator and fans

*Related to products available under CCR product portfolio

  • SYSTEM:

    Remote

  • TEMP. CLASS:

    M0,
    M1

  • REFRIGERANT:

    R744 (CO2),
    F-Gas (Remote)

  • ENERGY LABEL:

Some features may not be part of the standard equipment.

With the E6 Methos GD, high footprint utilization and optimized energy efficiency are on display.

With a range of technological refinements, the new Methos Glass Door cabinet range sets new standards for delivering high utilization of floor space while reducing life cycle costs. Enjoy the full transparent view on the products with glass doors. Make your merchandising become more attractive with the flexible shelving!

Key Features

Standard Configuration

  • Swing insulated All-glass Frameless door with small dark grey print and solid mullion
  • Display shelves with single side coating and 40mm scanner price rails
  • Integrated bumper and kickplate
  • Energy efficient EC fans
  • Bottom evaporator
  • Multiplex kit

Customization

  • Large selection of various door options:
    • Swing fully Transparent door with or without mullion (Transparent Gap Cover)
    • Swing fully Transparent door with Anti-reflex coating with or without mullion (Transparent Gap Cover)
    • Ultra slim fully Transparent 400mm door with or without mullion (Transparent Gap Cover)
  • Horizontal LED lighting for canopy, shelf and front shelf
  • Vertical LED lighting for door mullion, dividing wall and endwall
  • Dimming box for Premium LED lighting
  • Stainless steel interior
  • Large selection of shelves, price rails and front stoppers
  • Reinforced (additional) front bumper
  • Stainless steel bumper 20 x 20mm

Dimensions

E6 Methos GD Unit 53 63 83
Internal height STD-height [mm] 1620 1620 1620
Internal height L-height [mm] 1800 1800 1800
Bottom shelf depth [mm] 500 600 800
Shelf depth (min. / std. / max.) [mm] 350 / 400 / 400 400 / 500 / 550 400 / 600 / 600
Shelves STD-height (min. / std. / max.) [rows] 4 / 4 / 5 3 / 4 / 6 3 / 4 / 6
Shelves L-height (min. / std. / max.) [rows] 4 / 5 / 6 4 / 5 / 7 4 / 5 / 7
Load per module [kg / 125cm] 510 665 730
Module length without endwalls (40mm each) 125
150
170
188
210
250
375		  ✓
✓
–
✓
–
✓
✓		 ✓
–
✓
✓
✓
✓
✓		  ✓
–
–
✓
–
✓
✓
Temperature class M0 / Storage temp. -2/0 °C  ✓  ✓  ✓
Temperature class M1 / Storage temp. -1/+1 °C  ✓  ✓  ✓
*Per module two 625 mm display shelves per row useable
1 Energy Labels might change depending on cabinet configuration and are based on CO2 remote refrigerant technology
2 Related to products available under CCR product portfolio.
Check for availability of product in different height and module length for each solution type directly with CCR team.
