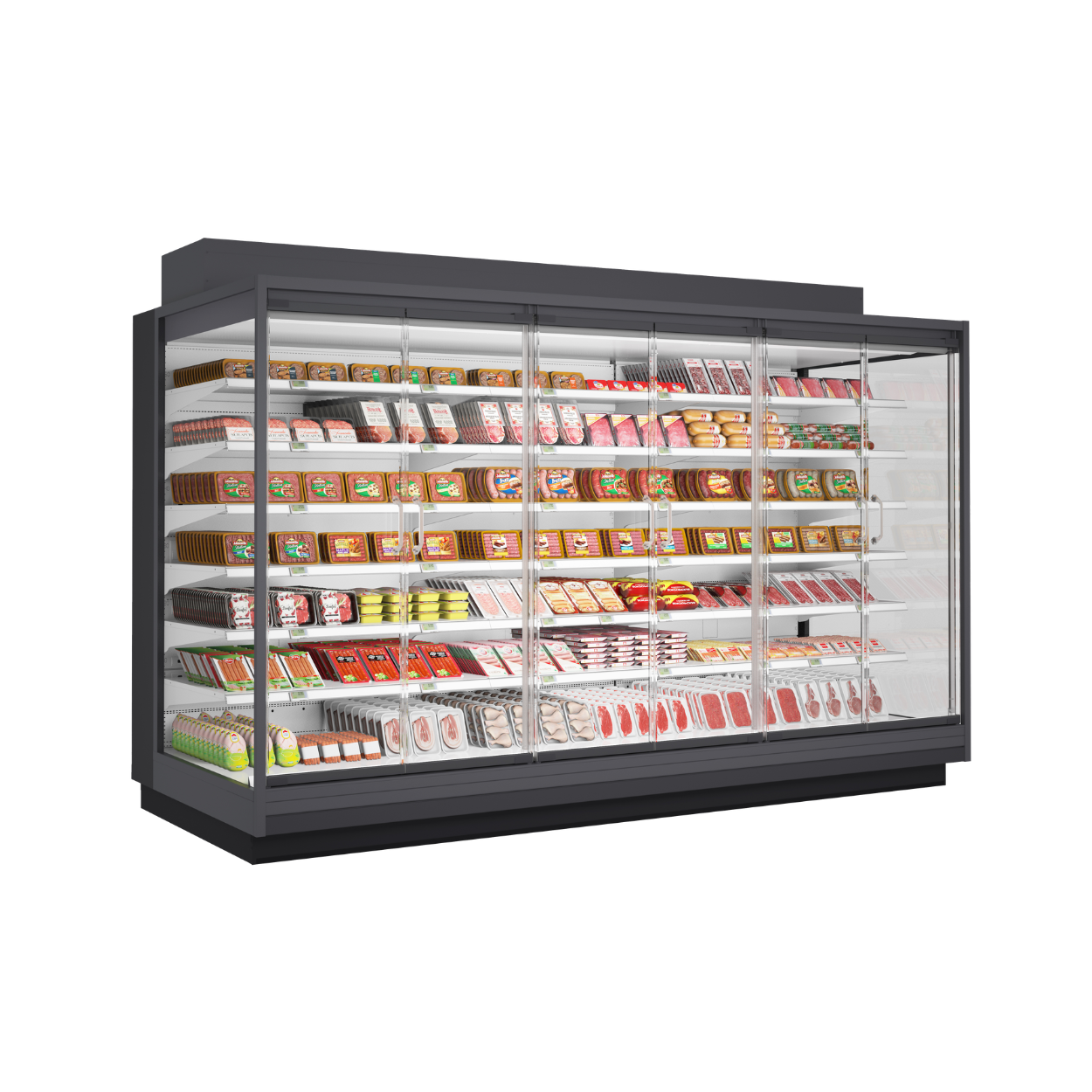

E6 MonaxEco® PI
E6 MonaxEco® PI
Closed multideck with attractive design
BENEFITS AT A GLANCE
- Energy efficient design
- Attractive product presentation
- Quick store extension with AirCOOL version
- High footprint sales productivity
- Powered by ecore pulse controller & CCR Pulse platform
-
SYSTEM:
Remote
-
TEMP. CLASS:
M0, M2, S0*
-
REFRIGERANT:
R744 (CO2),
F-Gas (Remote) -
ENERGY LABEL:
Some features may not be part of the standard equipment.
The energy label varies according to the cabinet configuration.
KEY FEATURES
Standard Configuration
- Low front height (295mm)
- Temperature Equalizer System
- Swing insulated All-glass Frameless door with small dark grey print and solid mullion
- Display shelves with 40mm scanner price rails
- BREEZtec® EC fans (CCR’s Next Generation Air Circulation System)
- Integrated front bumper and kickplate
- Backwall evaporator
- Multiplex kit
- Watercool & Aircool cabinets powered by ecore pulse controller; plug & play connectivity to many store gateways
Customization
- Large selection of door options:
-
- Swing fully Transparent door with or without mullion (Transparent Gap Cover)
- Swing fully Transparent door with Anti-reflex coating with or without mullion (Transparent Gap Cover)
- Horizontal LED lighting for canopy, shelf and front shelf
- Vertical LED lighting for door mullion, dividing wall and endwall
- Dimming box for Premium LED lighting
- Stainless steel interior
- Large selection of shelves, price rails and front stoppers
- Reinforced (additional) front bumper and endwall
- Plinth front bumper and endwall
- Stainless steel bumper 20 x 20mm
Dimensions
| E6 MonaxEco® | Unit | 63 | 73 | 83 |
| Internal height STD-height | mm | 1605 | 1605 | 1605 |
| Internal height L-height | mm | 1785 | 1785 | 1785 |
| Bottom shelf depth | mm | 610 | 710 | 810 |
| Shelf depth (min. / std. / max.) | mm | 350 (400) / 500 / 500 | 350 / 500 / 500 | 450 / 600 / 600 |
| Shelves STD-height (min. / std. / max.) | rows | 3 / 4 / 6 | 3 / 4 / 6 | 3 / 4 / 6 |
| Shelves L-height (min. / std. / max.) | rows | 4*** / 5 / 7 | 4*** / 5 / 7 | 4*** / 5 / 7 |
| Load per module | kg / 125cm | 690 | 690 | 850 |
| Module length without endwalls (40mm each) |
125 | ✓ | ✓ | ✓ |
| 188 | ✓ | ✓ | ✓ | |
| 230 | ✓ | – | ✓ | |
| 250 | ✓ | ✓ | ✓ | |
| 375 | ✓ | ✓ | ✓ | |
| Temperature class M0 / Storage temp. -2/0 °C | ✓ | ✓ | ✓ | |
| Temperature class M2 / Storage temp. 0/+2 °C | ✓ | – | ✓ | |
| Temperature class S0 / Storage temp. -2/-1 °C** | – | – | ✓ |
*Minimum shelf depth for temperature class M2 | **Recommended according to German standard DIN 10508 “Food hygiene – Temperature requirements for
foodstuffs” | ***3 rows as a minimum for MonaxEco® with the temperature class M0
1 Energy Labels might change depending on cabinet configuration and are based on CO2 remote refrigerant technology
Check for availability of product in different height and module length for each solution type directly with CCR team.
foodstuffs” | ***3 rows as a minimum for MonaxEco® with the temperature class M0
1 Energy Labels might change depending on cabinet configuration and are based on CO2 remote refrigerant technology
Check for availability of product in different height and module length for each solution type directly with CCR team.
