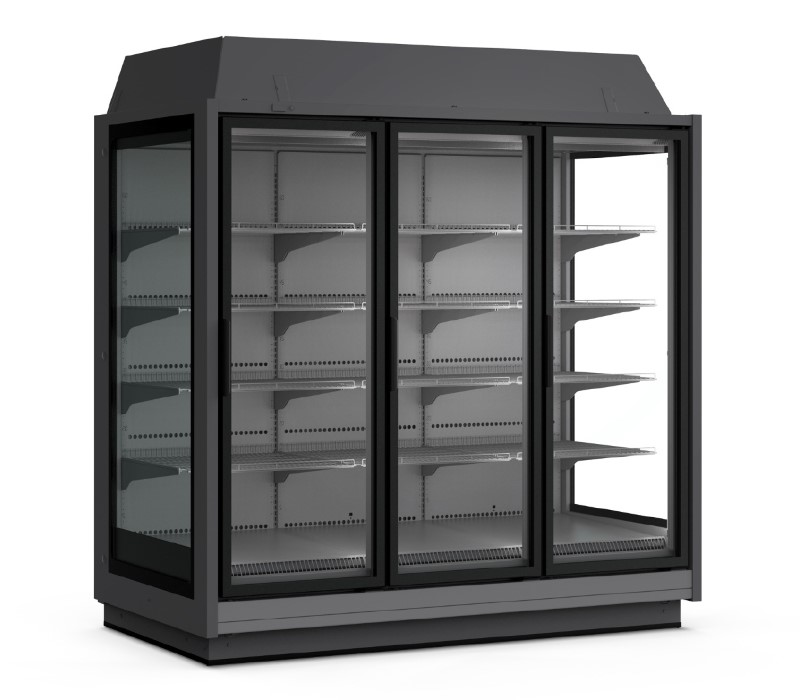

E6 Velando® AF PI

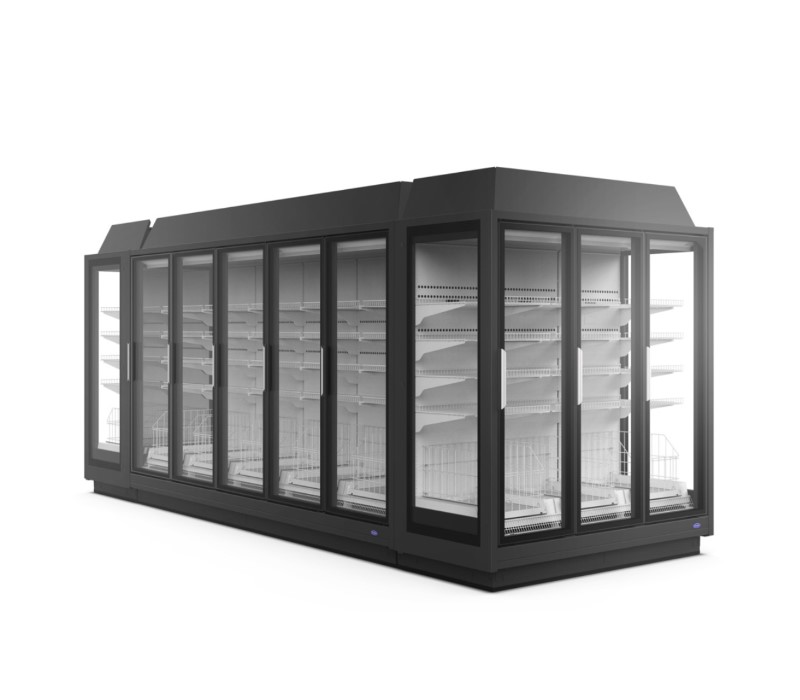

E6 Velando® AF PI - Image 2

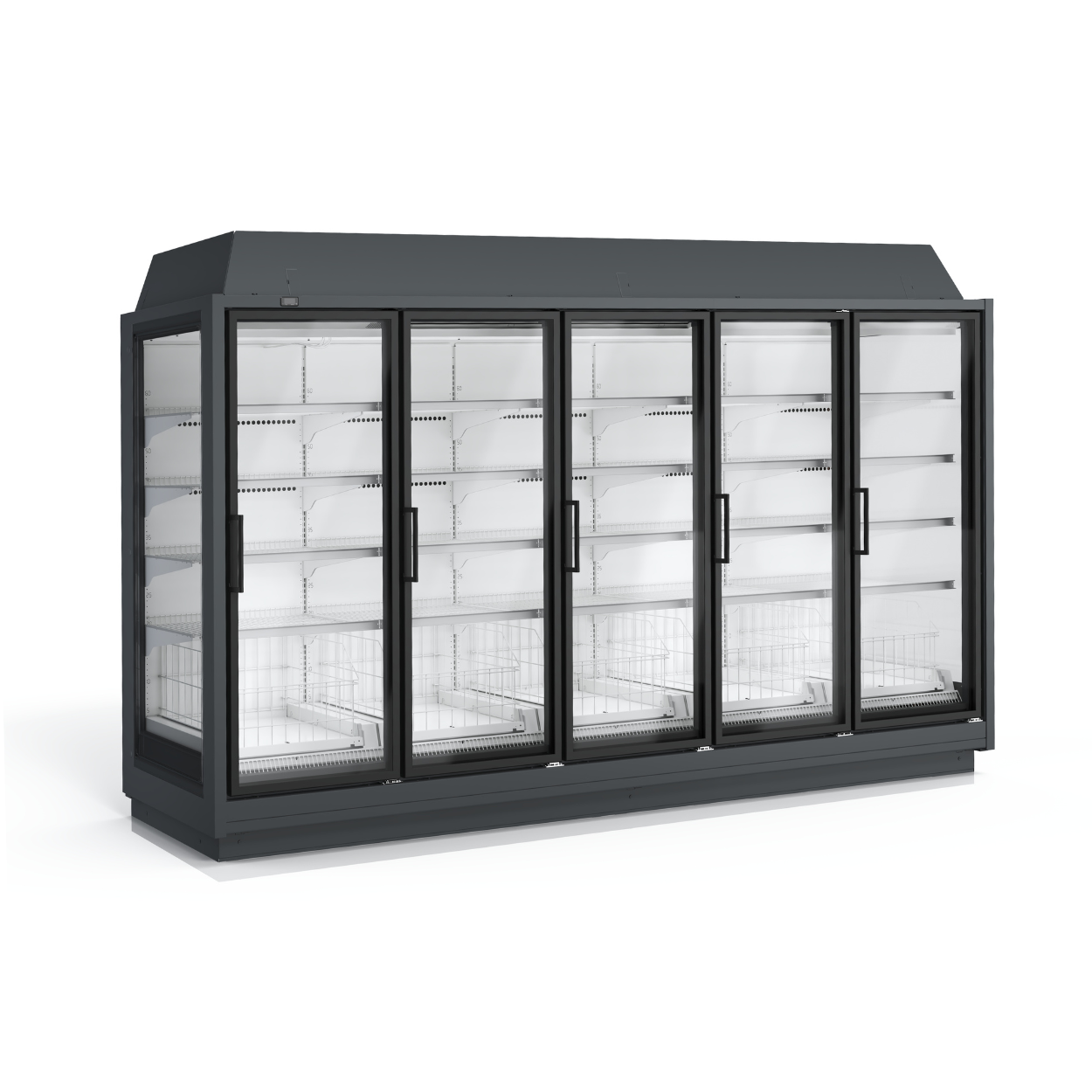

E6 Velando® AF PI - Image 3

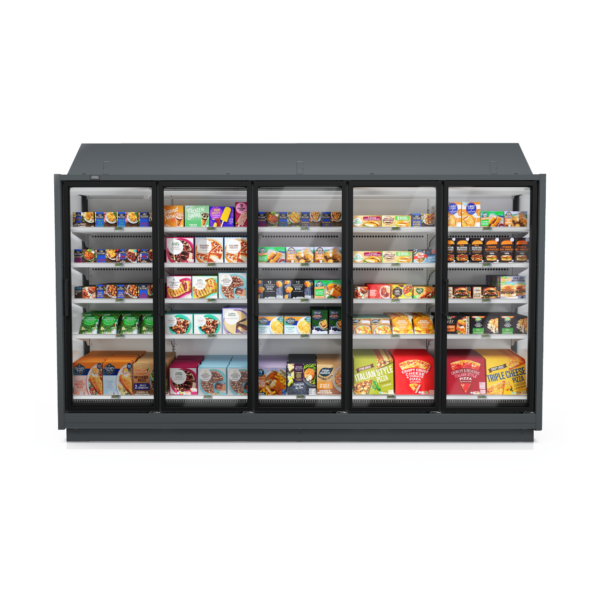

E6 Velando® AF PI - Image 4

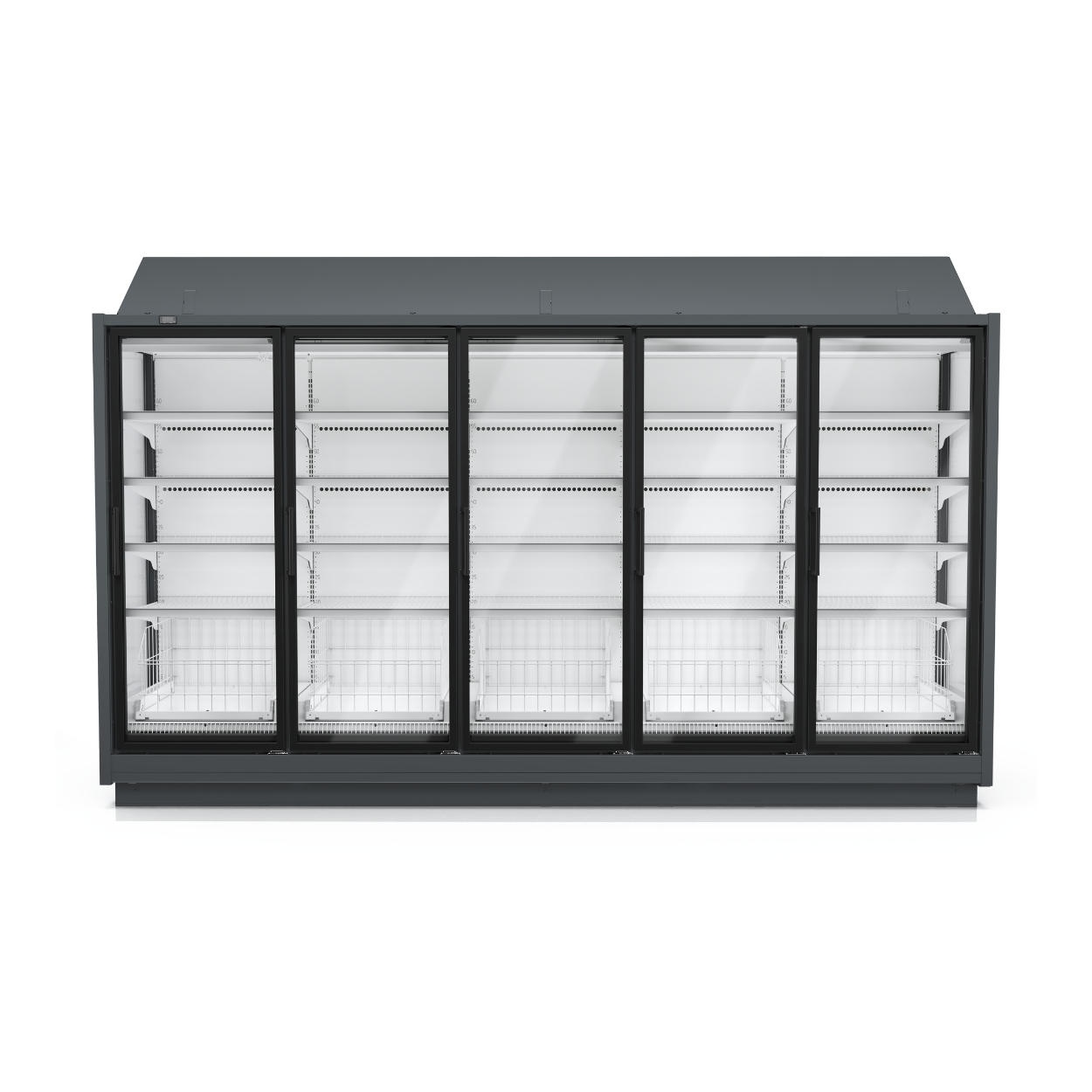

E6 Velando® AF PI

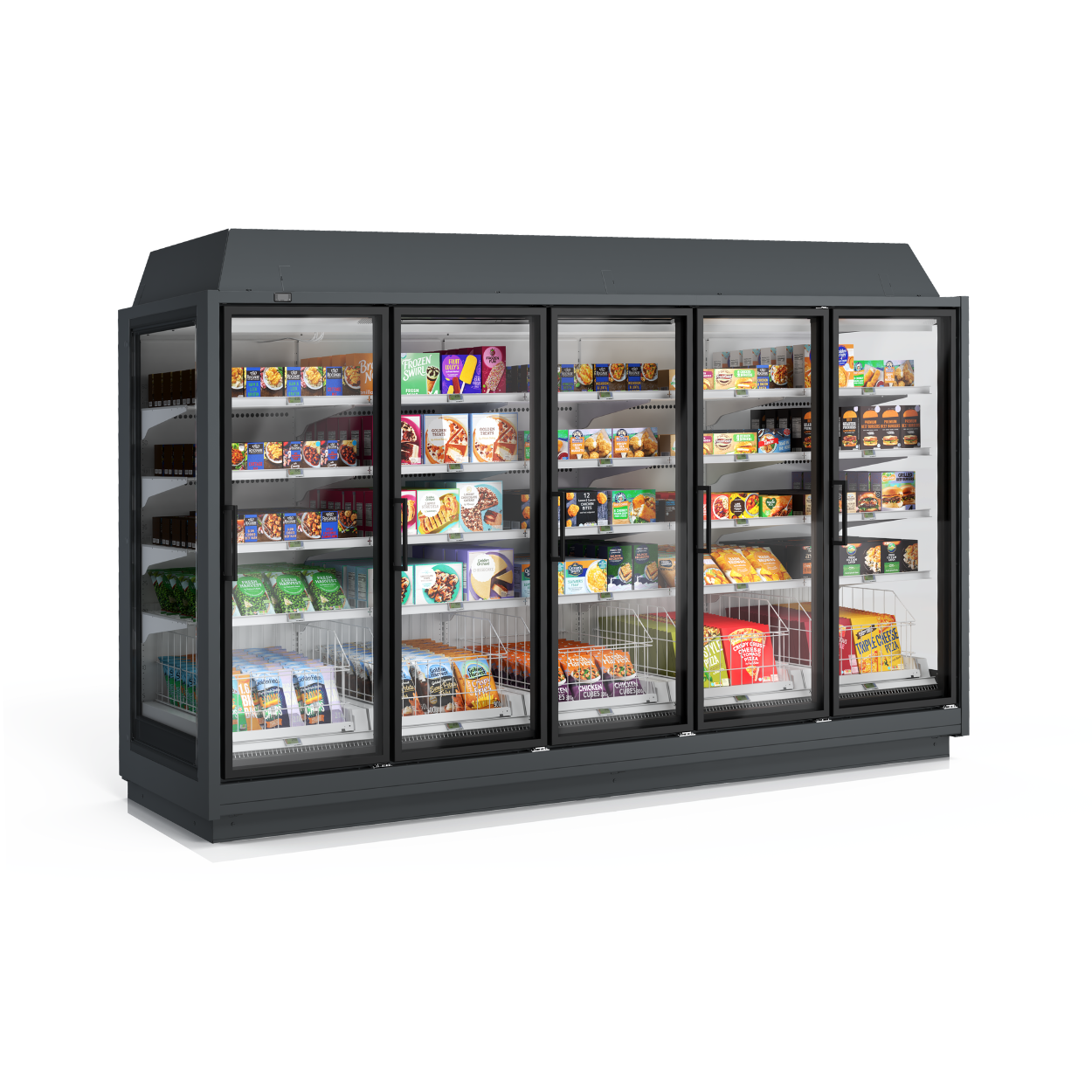

E6 Velando® AF PI

Plug-In Vertical Freezer with large goods capacity and flexible installation

BENEFITS AT A GLANCE

  • Vertical freezer with plug-in refrigeration system
  • Ideal for market extensions with existing Remote Velando freezer installations (multiplexing possibility)
  • Connection possibility to a wide range of control systems
  • High footprint sales productivity

  • SYSTEM:

    Plug-in

  • TEMP. CLASS:

    L1

  • REFRIGERANT:

    R290

  • ENERGY LABEL:

E6 Velando® AF PI freezer combines the advantage of a large goods volume of a remote vertical freezer with the positioning flexibility of a plug-in cabinet.

Heat-reflecting coatings on the inner glass panes and a special gas filling contribute to keep the doors free from condensation and dry on the customer side.

Key Features

Standard Configuration

  • Anti-Fog (AF) doors, non-heated (passive)
  • Low energy cabinet frame with glass fiber reinforced plastic for reduced energy consumption (High Efficiency Frame, HEF version)
  • Ergonomic door handles
  • Vertical LED lighting for mullions
  • Wire shelves with rods front-back
  • Single piece kickplates
  • Energy efficient EC fans
  • Bottom evaporator
  • Multiplex kit

Customization

  • Panorama or non-glazed endwalls
  • Horizontal LED lighting for canopy
  • Active defrost water evaporation
  • Holders for customer specific top covers
  • Plinth bumpers for increased protection
  • Wide range of accessories with wire shelves, display baskets and telescopic display baskets for easy loading
  • Wide range of exterior and interior colors



Dimensions

E6 Velando® AF Unit AF 63.L1-PI (L)
Module 3D-235 4D-313 5D-390
Max. height inside, S-height mm 1540 1540 1540
Max. height inside, L-height mm 1720 1720 1720
Bottom shelf depth mm 650 650 650
Shelf depth (min. / std. / max.) mm 550 / 600 / 600 550 / 600 / 600 550 / 600 / 600
Shelves S-height (min. / std. / max.) rows 3 / 4 / 6 3 / 4 / 6 3 / 4 / 6
Shelves L-height (min. / std. / max.) rows 3 / 4 / 7 3 / 4 / 7 3 / 4 / 7
Length without endwalls (50 mm each) mm 2345 3125 3900
Useful volume S-height l 2190 2919 3643
Useful volume L-height l 2446 3260 4069
Load per module kg / 79cm 290 (320)* 290 (320)* 290 (320)*
Temperature class L1 / Storage air temp. -22/-24 °C ✓ ✓ ✓
*For cabinets with two endwalls
1 The energy label varies according to the cabinet configuration. | For questions related to other refrigerants and features, contact CCR Team
