Velando® Compact Space

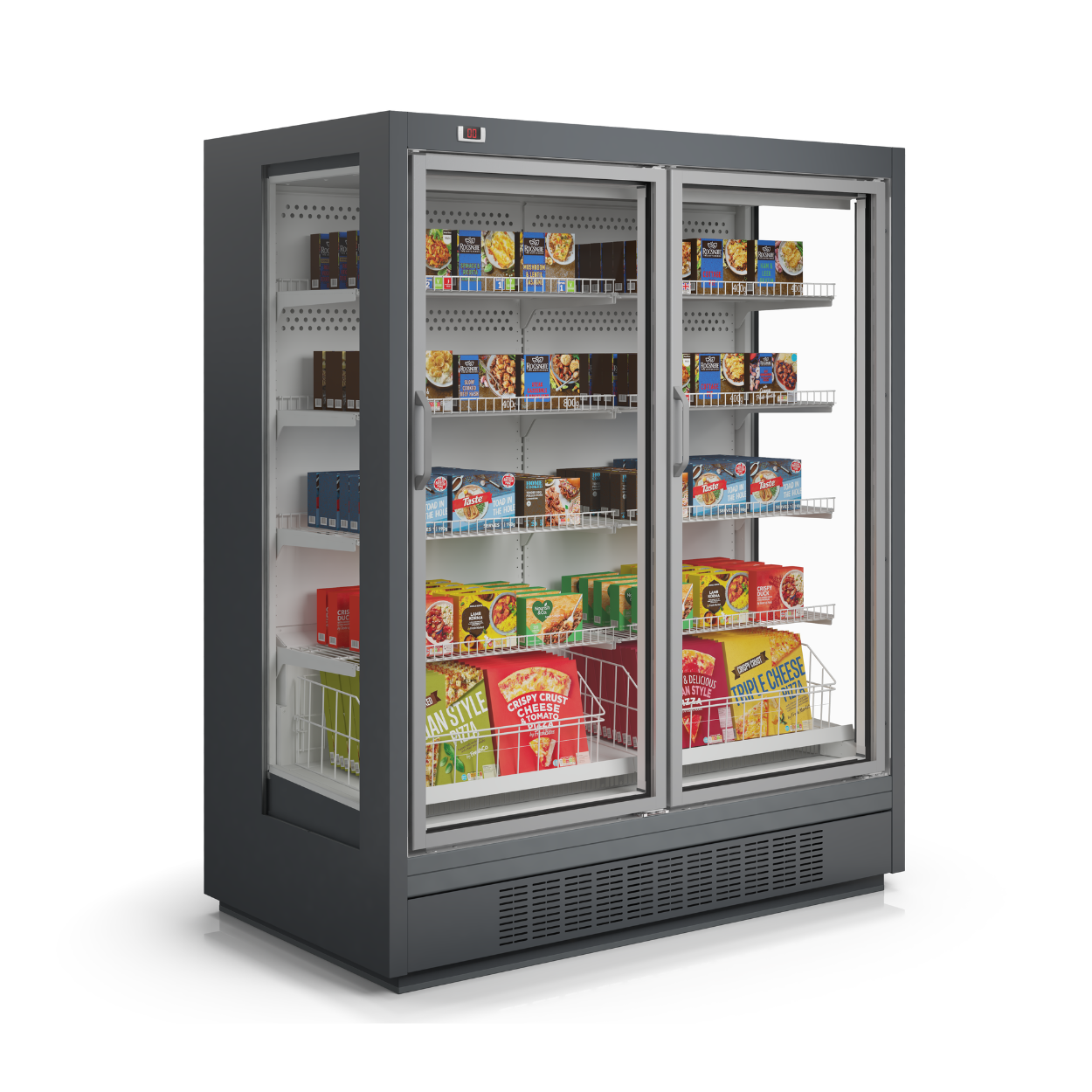

Velando® Compact Space - Image 2
Velando® Compact Space - Image 3

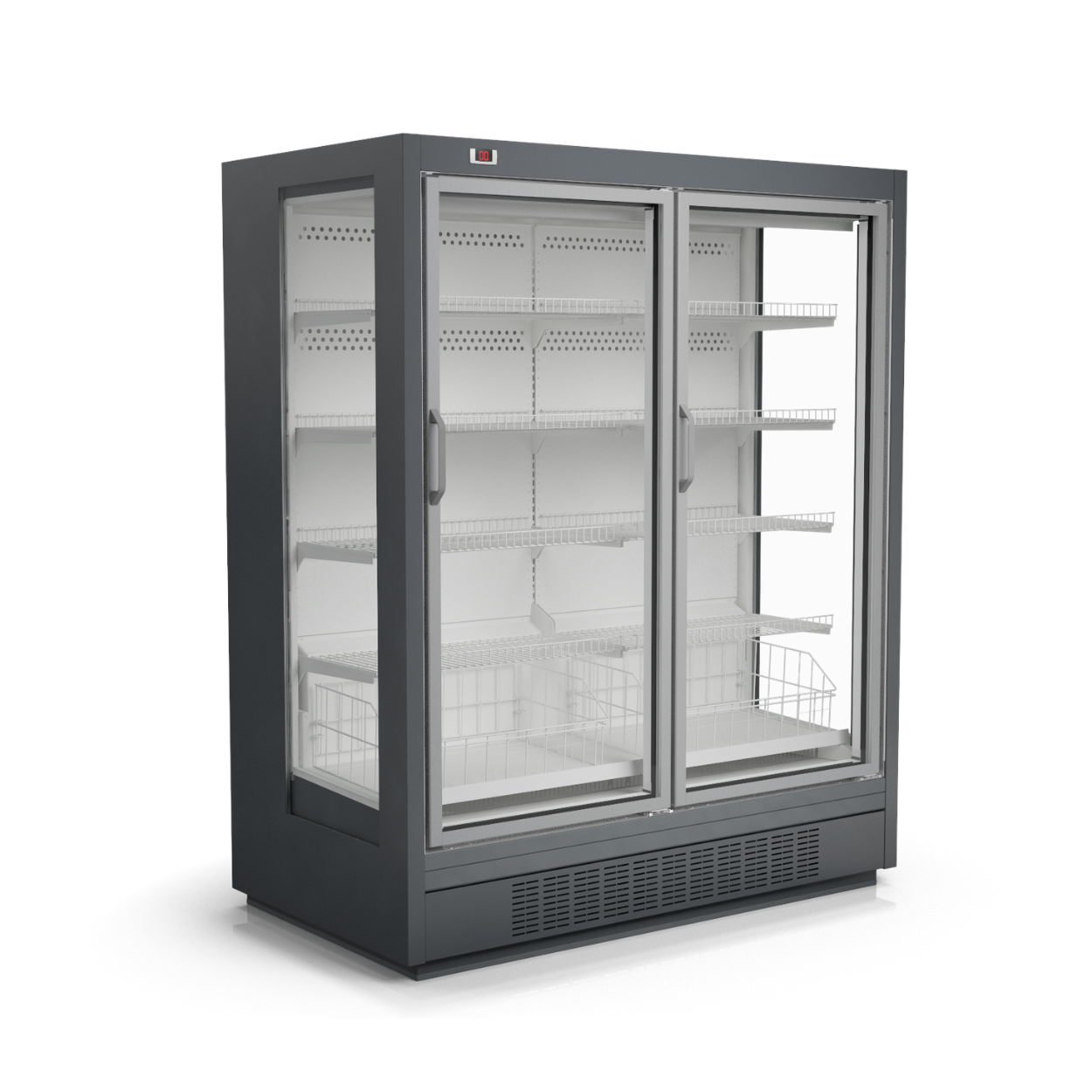

Velando® Compact Space - Image 4

Velando® Compact Space

Velando® Compact Space

Cutting edge deep-freeze solution for supermarkets and C-stores

BENEFITS AT A GLANCE

  • A reliable, high‑quality solution for your frozen food area
  • Performance redefined with CCR’s high performance air curtain and evaporator air flow technology
  • Harmonised exterior design with Optimer® LG EVO chiller multideck
  • Large visible area
  • Plug & play for remote monitoring with connectivity to various store gateways
  • Wide range of application: freezer and chiller mode

  • SYSTEM:

    Plug-in

  • TEMP. CLASS:

    M0 / L1

  • REFRIGERANT:

    R290

  • ENERGY LABEL:

Some features may not be part of the standard equipment.
Energy label may change depending on configuration.

The perfect mix of product visibility and floor space productivity: Modern, compact and multiplexible

Stores with high customer frequency and limited retail space require flexible and adjustable equipment to meet growing customer expectations for the grocery offerings.

The improved Velando® CS is an ideal combination of modern design, modularity and flexibility and, in addition to the pure vertical glass door freezer, now also offers an efficient, switchable solution to increase the assortment of goods in the markets.

Key Features

Standard Configuration

  • Painted panels galvanized steel with hard-wearing powder coated finish, FA0605 white interior, FA0633 nimbus grey exterior
  • Door frame natural (silver) E6 EV1
  • Solid endwalls
  • Integrated plastic front bumper, FA0632 statusgrey
  • Temperature-assured forced-air cooling with honeycomb air outlet
  • Energy optimized fans
  • 4 rows of standard grid shelves with display covers and 40 mm scanner price rails at shelves and at bottom deck
  • Vertical smart LED 5000 K cool white at endwalls and behind each mullions
  • Floor close-off seal at both lateral sides and front side
  • Triple glass doors with heated frame
  • Electronic controller
  • Natural refrigerant R290 (propane)

Customization

  • Panorama endwalls or no endwalls for multiplexing
  • Multiplex kits: side by side kit and transparent plexi partition, back to back kit and side covers, possible up to 2*X block installations
  • Rear wall panelling
  • Heavy duty castors with reinforeced bottom
  • Display baskets and wire dividers
  • Price rail versions
  • Special short display shelf to lowest position
  • Country specific mains cable
  • Connectivity options to various store gateways
  • Air deflector in cooling unit for better air circulation
  • Reverse the direction of door opening
  • Up to 6 rows of display shelves

Dimensions

Velando® CS2 Unit 1761/81 LG 2561/81 LG 1781 LG 2581 LG
Storage Temperature [°C] -2…0 -22…-24 -22…-24 -22…-24
Refrigerant R290 R290 R290 -1…+1
Module length with endwalls [mm] 1662 2443 1662 2443
Cabinet depth [mm] 770 770 770 770
Height outside [mm] 2040 2040 2040 2040
Net volume [l] 1013 1519 1013 1519
Total display area* [m²] 3,32 4,36 3,32 4,36
Total energy consumption****
Freezer mode
Chiller mode		 [kWh/d] 40,75
27,19		 52,91
40,4		 40,75 52,91
Heat dissipation***
Freezer mode
Chiller mode		 [W] 1698
1133		 2205
1683		 1698 2205
Temperature class** M0 / L1 M0 / L1 L1 L1
*With panorama sidewalls | **At climate class 3 according to ISO 23953 | *** With solid endwalls | **** measured in accordance with the applicable EU delegated regulation
1 Energy Labels might change depending on cabinet configuration and are based on R290 plug-in refrigerant technology
2 All technical data includes LED lighting consumption where applicable

Documents


Velando® Compact Space Leaflet-EN

Velando® Compact Space Leaflet-DE
