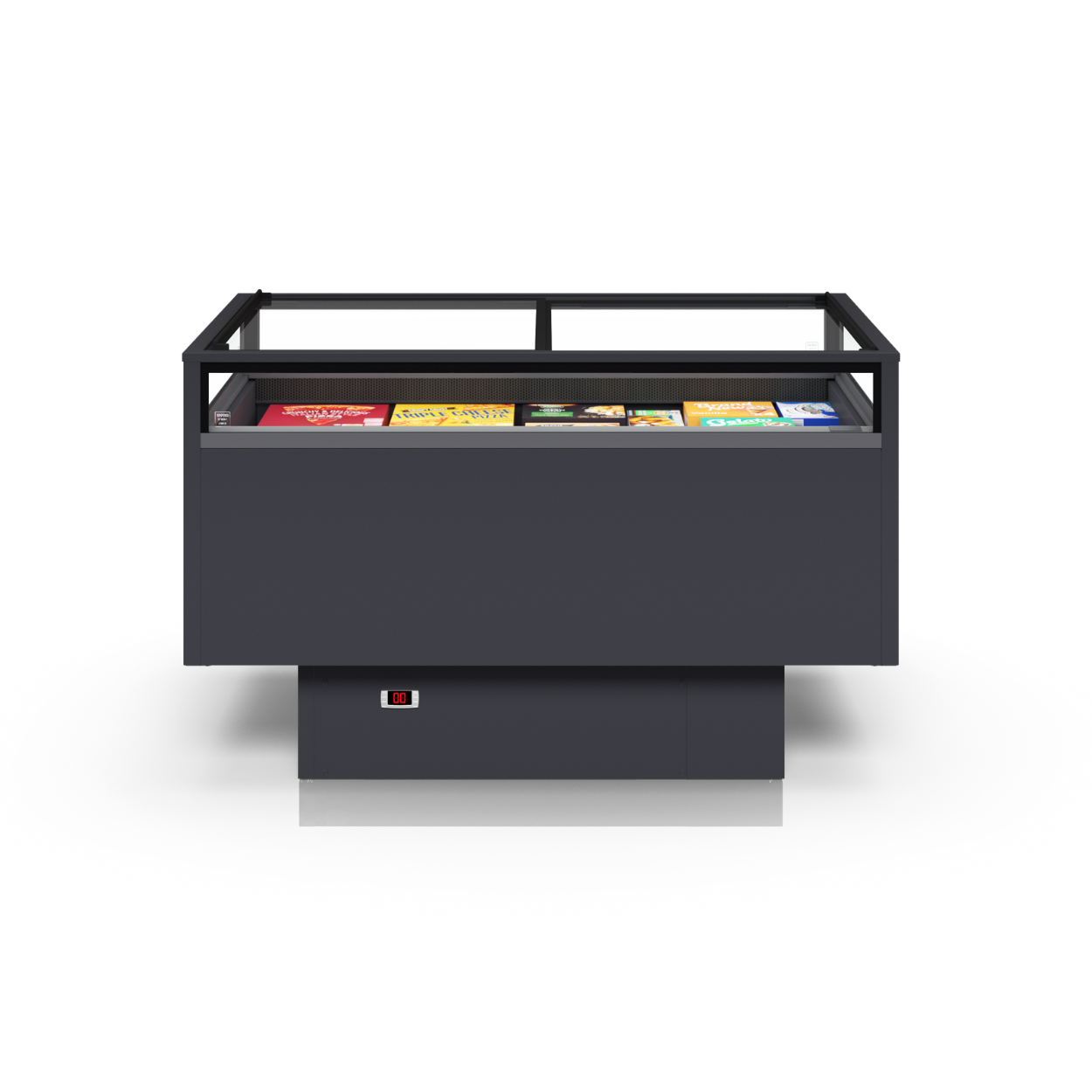

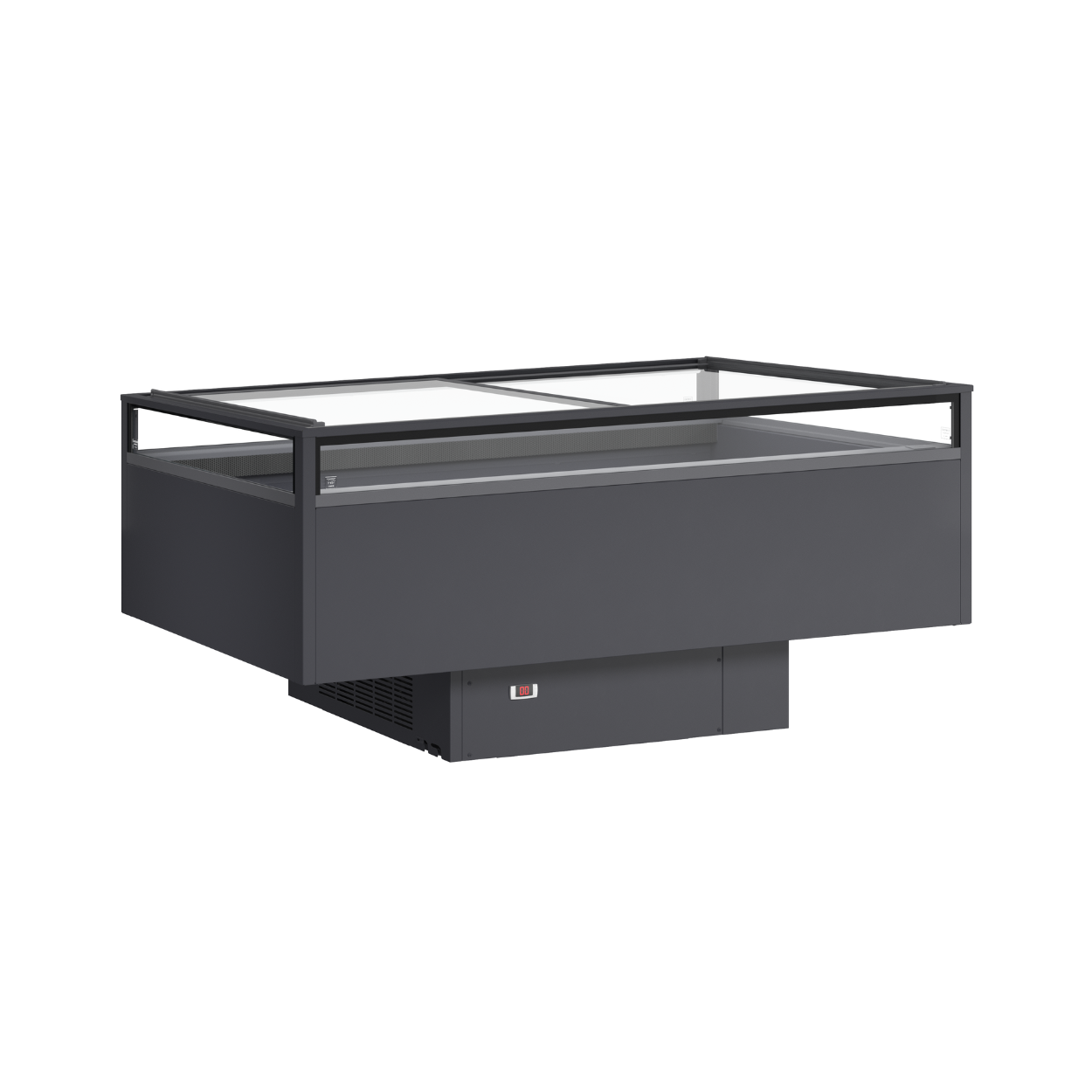

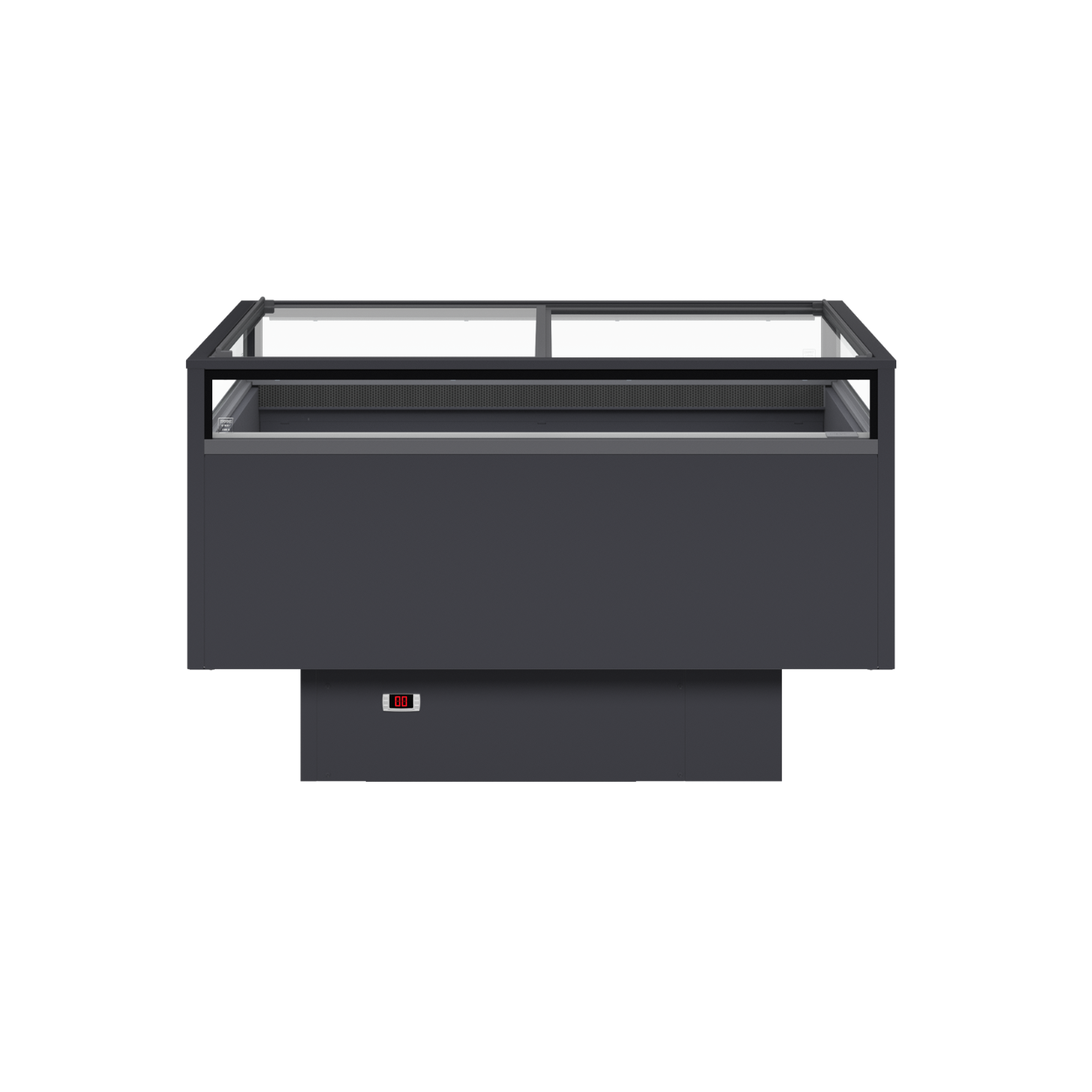

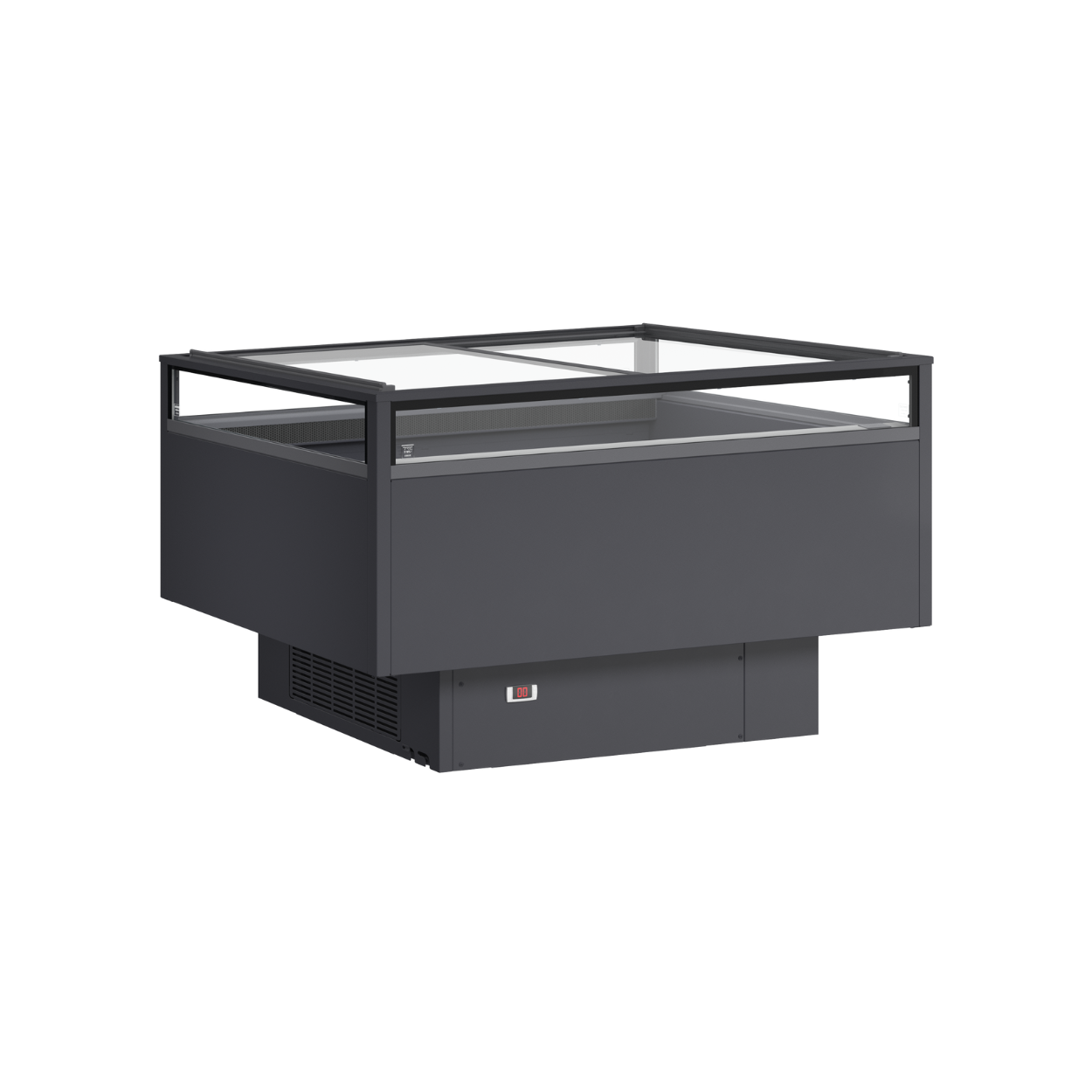

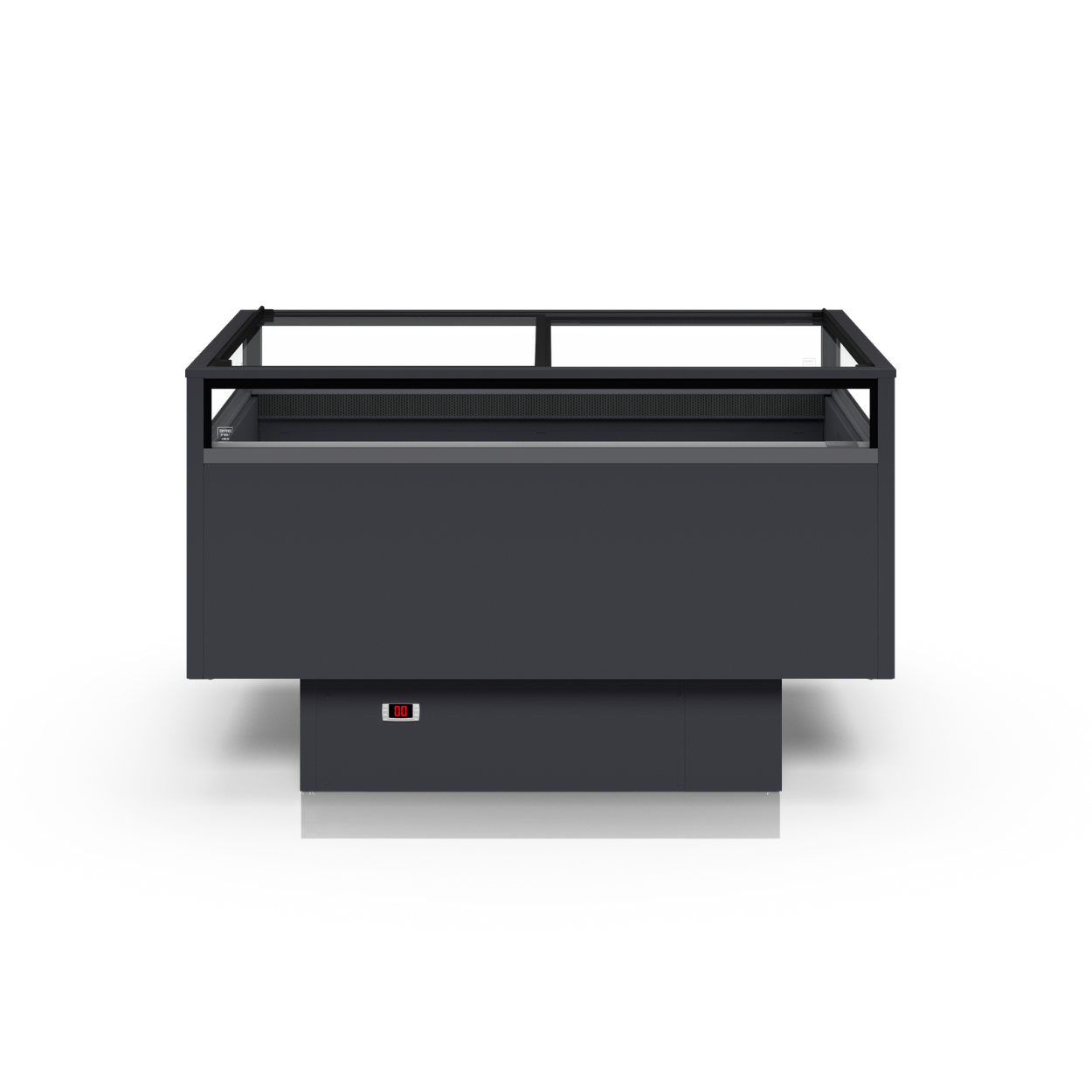

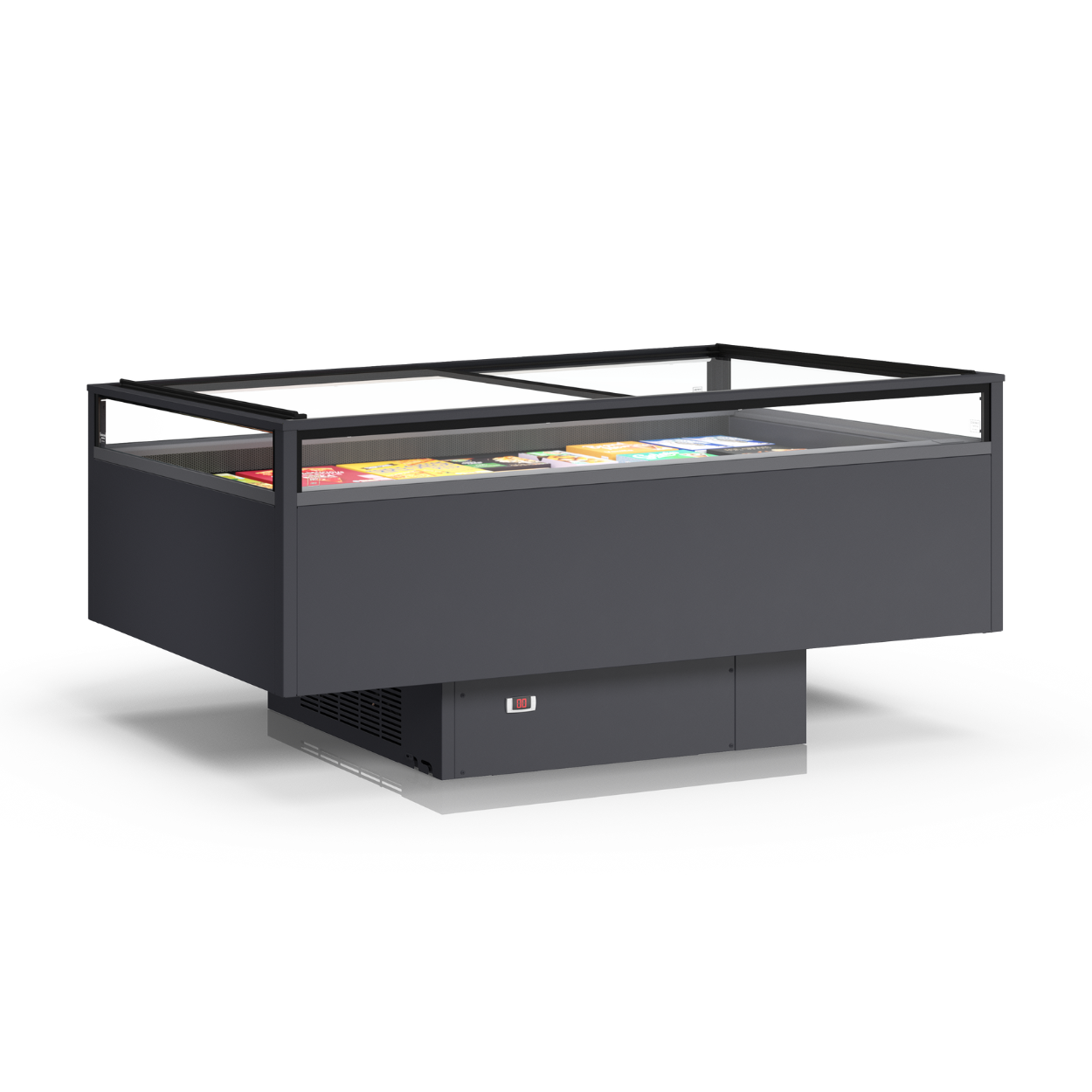

visiCUBE® TOP
visiCUBE® TOP - Image 2
visiCUBE® TOP - Image 3

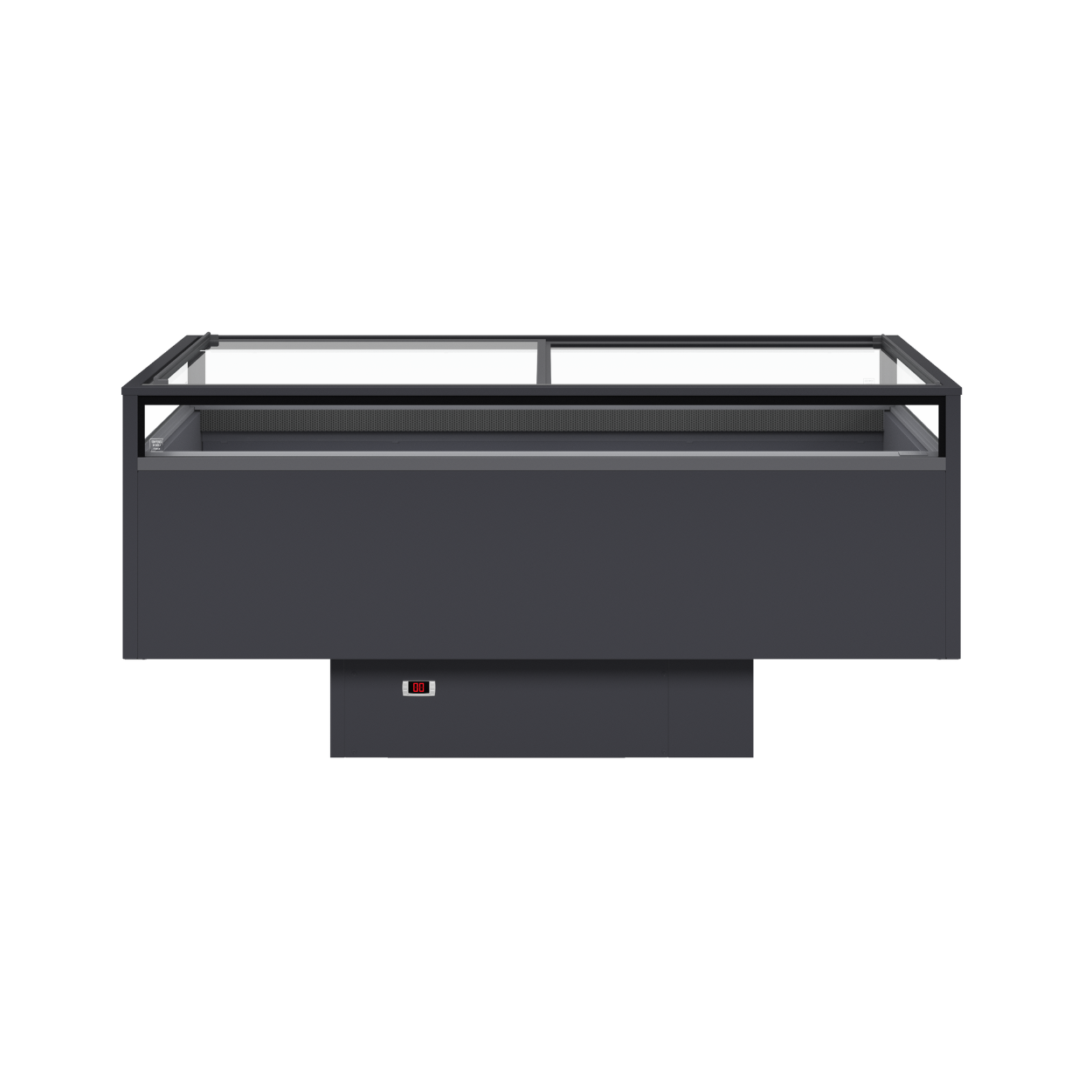

visiCUBE® TOP - Image 4

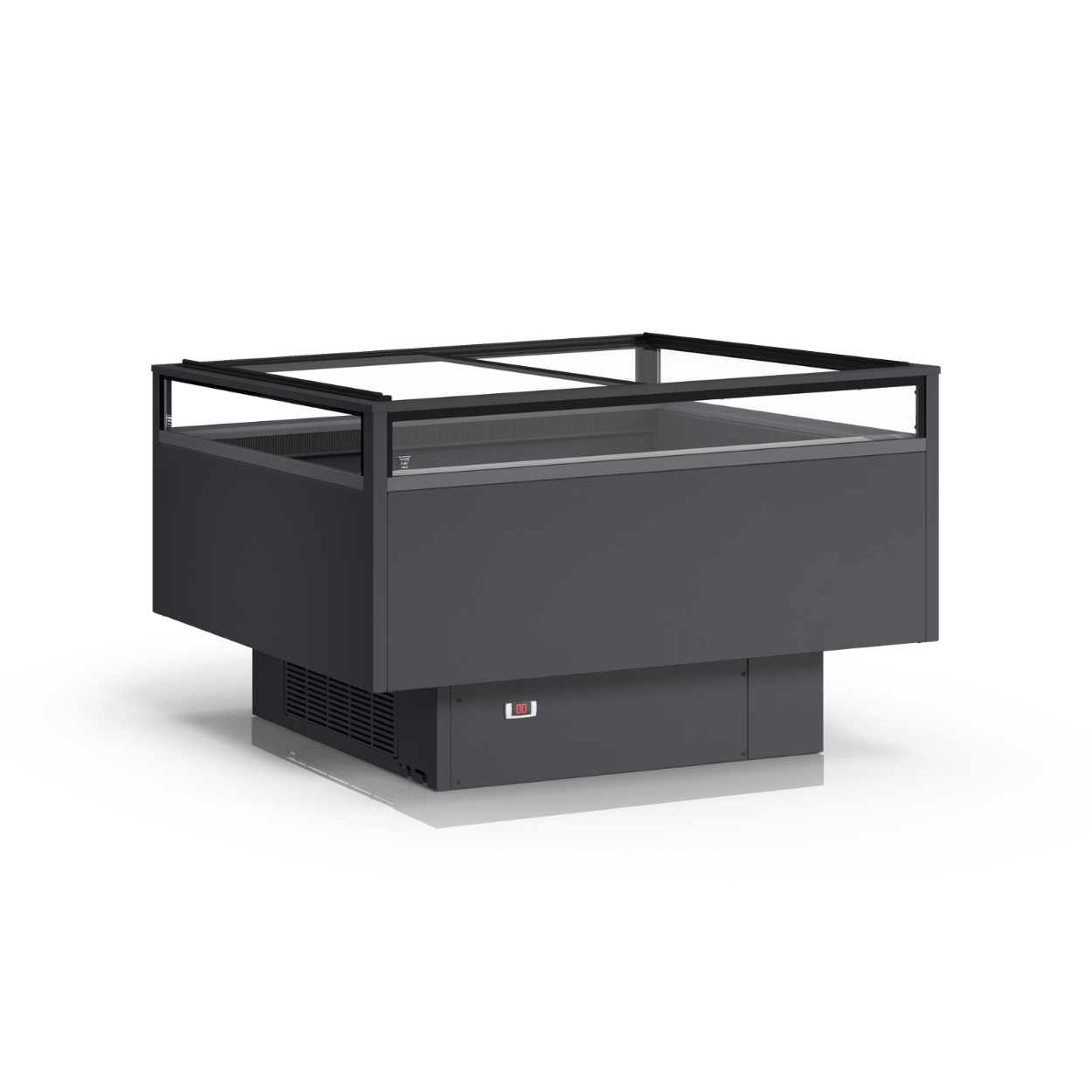

visiCUBE® TOP - Image 5
visiCUBE® TOP - Image 6
visiCUBE® TOP - Image 7

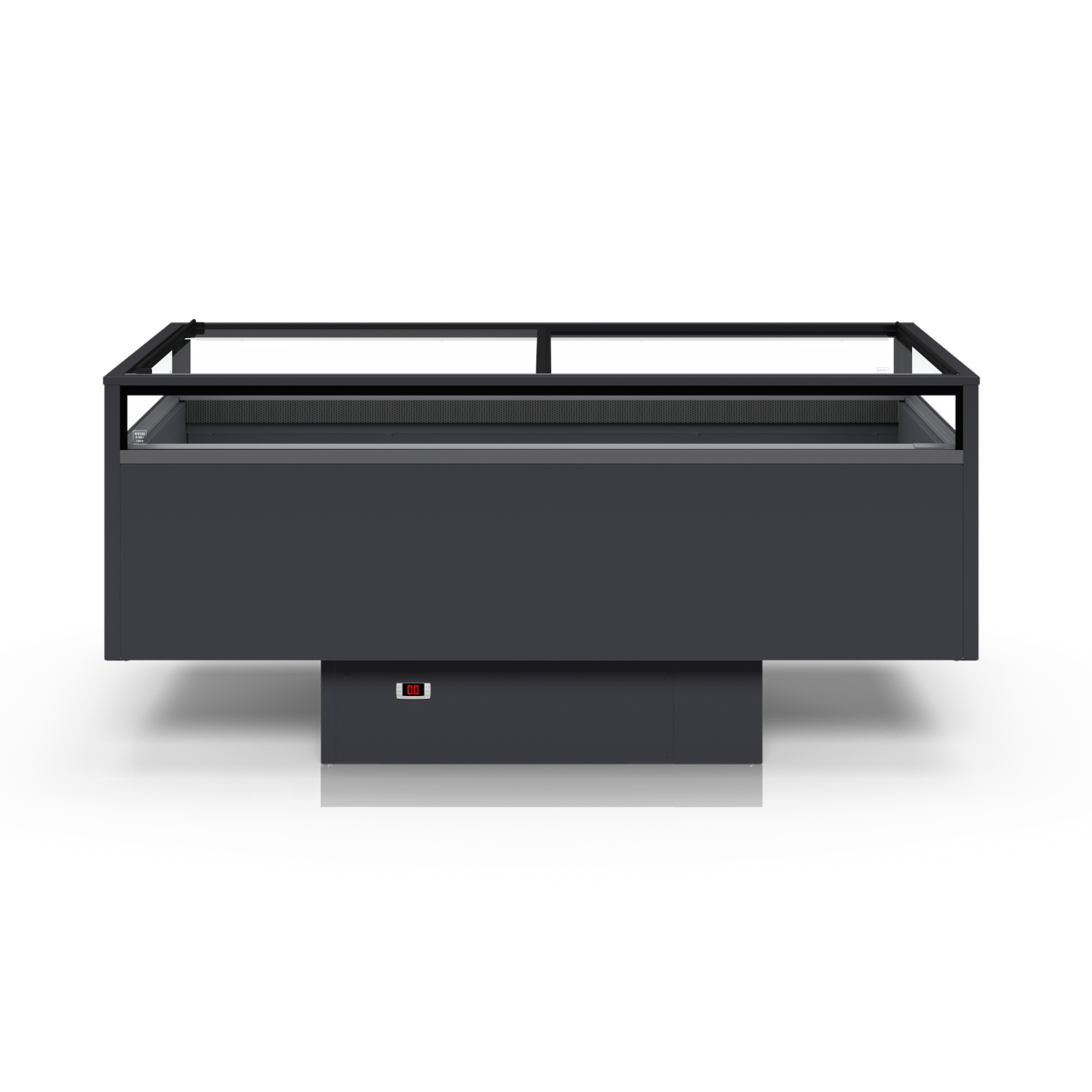

visiCUBE® TOP - Image 8

visiCUBE® TOP

visiCUBE® TOP

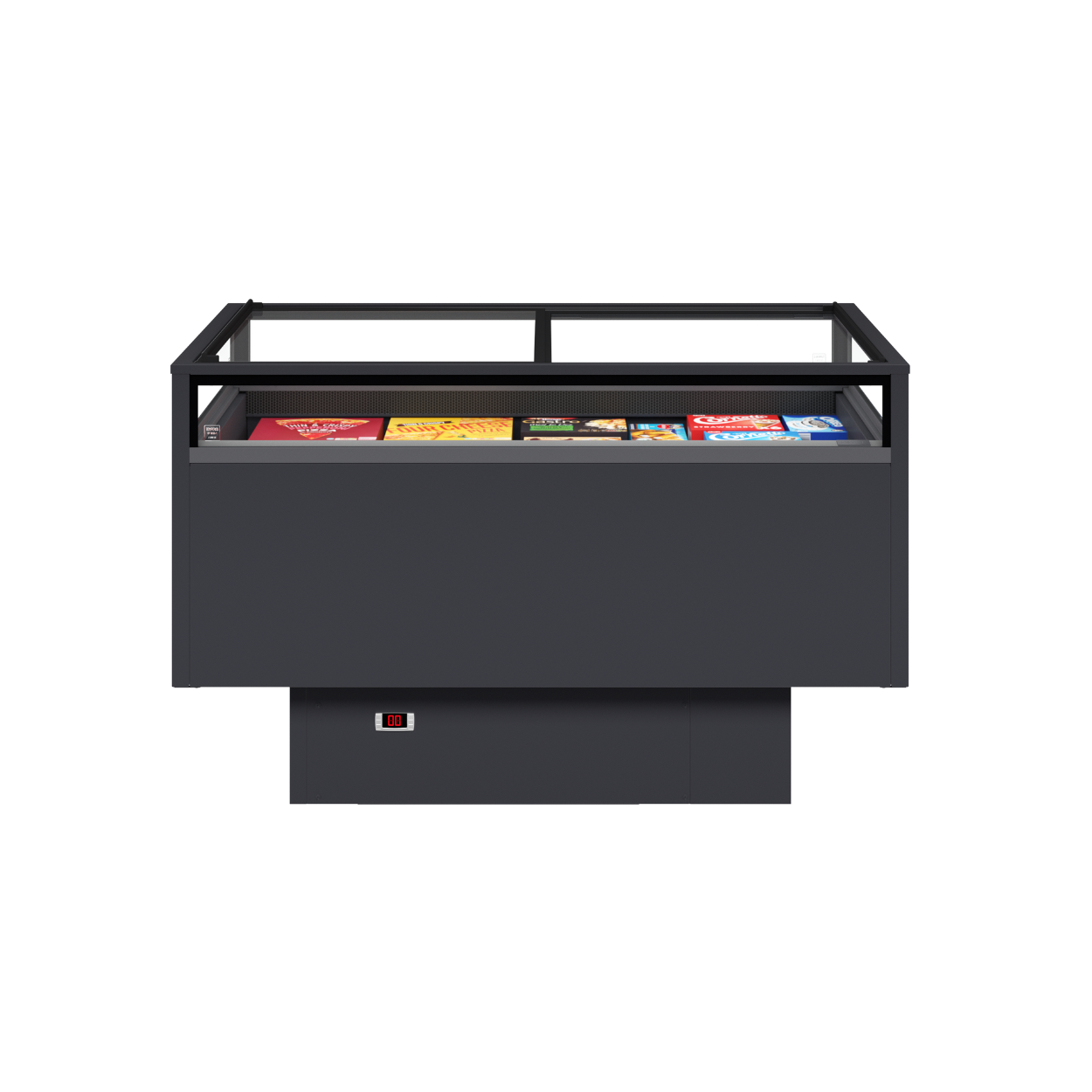

Semi–transparent, switchable plug-in island for large-volume promotional sales

BENEFITS AT A GLANCE

  • High degree of flexibility in application and customization
  • Semi-transparent modern cubic design for optimal floor space usage
  • Large number of paintable parts and extended selection of plastic colors
  • Wide range of combinations and optional accessories for the basic and upper segment
  • Easy maintenance for reduced service time and low life cycle costs

  • SYSTEM:

    Plug-in

  • TEMP. CLASS:

    M1 / M0 / S
    L1

  • REFRIGERANT:

    R290

  • ENERGY LABEL:


    *

*Temperature class S only

Engineered for Volume and Visibility

Introducing the semi-transparent, modern plug-in island visiCUBE® TOP – purpose-built for large-volume promotional sales. Its contemporary cubic design maximizes floor space usage, creating an impactful yet efficient presentation. Ideal for high-traffic retail zones, this solution balances visibility with product protection to support dynamic sales campaigns.

This island is designed with a high degree of flexibility in both application and customization. A wide array of paintable components and an extended palette of plastic colors make it easy to align with your brand identity. Whether you’re looking for subtle elegance or eye-catching contrast, customization is effortless and precise.

A broad range of combinations and optional accessories makes this solution ideal for both basic and premium retail segments. Beyond versatility, the island is built for easy maintenance, reducing service time and ensuring low life cycle costs. It’s a robust, scalable choice for retailers who value performance and efficiency.

KEY FEATURES

Standard Configuration

  • Sliding glass lids (stepped profile)
  • Double layer glass panels all around
  • Internal and external panels galvanized steel with hard-wearing powder-coated finish, inside in Signal White, outside in Nimbus Grey and plastic parts in Graphite Grey
  • Low feet
  • Temperature-assured forced-air cooling
  • Automatic defrost with drip water evaporation
  • Electronic control with integrated temperature display
  • Natural refrigerant R290

Customization

  • Sliding glass lids (E profile)
  • Smart LED, handrail lighting, light color Neutral White 4000K, Cool White 5700K, Fresh red
  • Scanner price rail, 40 or 60 mm
  • Height adjustable wire shelves
  • Product dividers
  • Wire divider, front-back
  • Bottom bumper all around, plastic or stainless steel
  • Wooden cladding with or without stainless steel bumper
  • Extended cabinet feet (90 mm) with or without bottom plinth panel all around
  • Castors, 2 rotating and 2 covered wheels or 4 rotating wheels (90 mm) incl. brakes
  • Connectivity options to various store gateways
  • Easy condenser access
  • Condenser filter
  • Additional temperature display
  • Separate power cable for lighting
  • Country specific mains cable

Dimensions

visiCUBE® TOP switchable2 Unit 100 150 200
Temperature [°C] -1…+1 / -2…-1
-22…-24		 -1…+1 / -2…0 / -2…-1
-22…-24		 -1…+1 / -2…0 / -2…-1
-22…-24
Refrigerant R290 R290 R290
Width [mm] 945 1445 1945
Depth  [mm] 940 940 940
Height (without castors) [mm] 910 910 910
Volume (L1 / M1) [l] 160 255 350
Total display area [m²] 0,64 1,03 1,39
Energy consumption***
Freezer mode (L1)
Chiller mode (M1 / M0 / S)		 [kWh/d] 5,50
2,98 / – / 3,37		 7,91 / 8,23**
4,18 / 4,32 / 5,02		 9,29 / 9,99**
5,19 / 5,35 / 6,14
Average heat dissipation
Freezer mode (L1)
Chiller mode (M1 / M0 / S)		 [W] 229
124 / – / 140		 330 / 343**
174 / 180 / 209		 387 / 416**
216 / 223 / 256
Temperature class* M1 / S
L1		 M1 / M0 / S
L1		 M1 / M0 / S
L1
*At climate class 3 according to ISO 23953 | **Temperature class S version | ***Measured in accordance with the applicable EU delegated regulation
1 Energy Labels might change depending on cabinet configuration and are based on R290 plug-in refrigerant technology
2 All technical data includes LED lighting consumption where applicable
