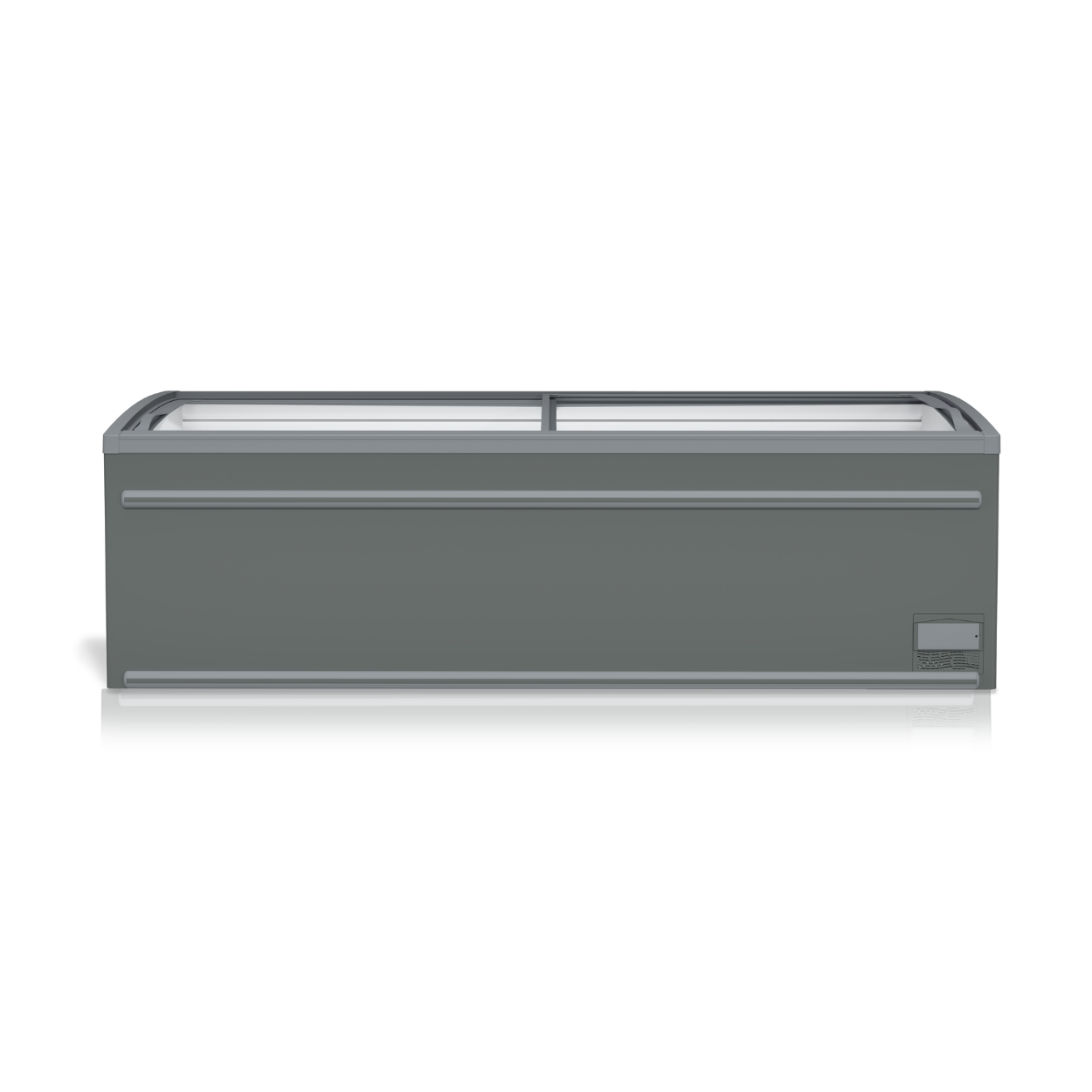

Visor® Q

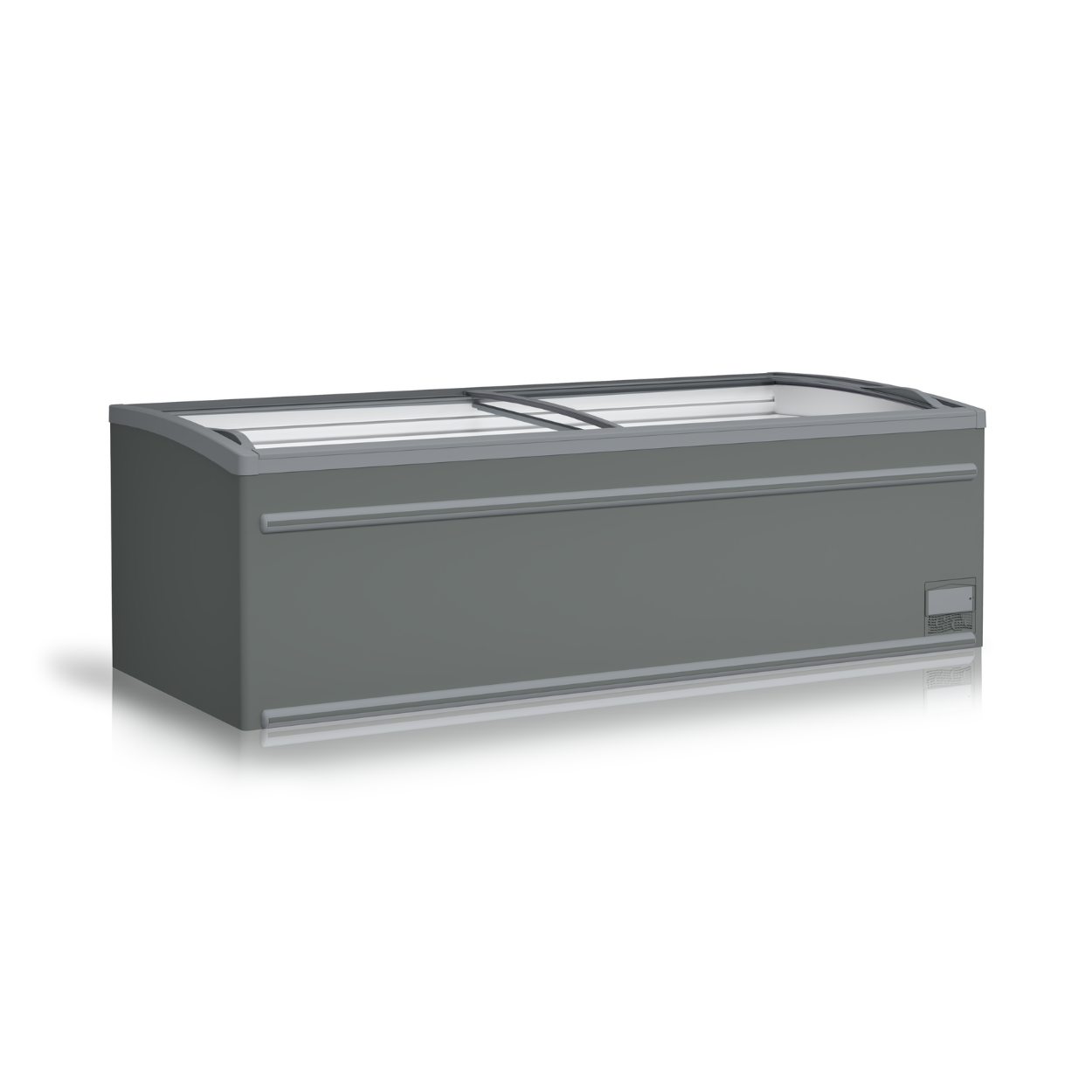

Visor® Q - Image 2

Visor® Q

Visor® Q

Plug-in chest freezer for flexible applications

BENEFITS AT A GLANCE

  • Large-volume freezer designed for versatile configurations
  • Stylish design with ergonomically curved sliding lids
  • Efficiency-optimized components
  • Maximized product presentation area
  • Optimized footprint for superior efficiency with Top Freezer
  • Eco friendly and future ready natural Propane refrigerant

  • SYSTEM:

    Plug-in

  • TEMP. CLASS:

    L1

  • REFRIGERANT:

    R290

  • ENERGY LABEL:

A wide display compartment offering a perfect solution for modern retail

Visor® Q – Plug-in chest freezer for flexible application.

Large-volume freezer designed for versatile configurations

KEY FEATURES

Standard Configuration

  • Exterior metal sheet color: mouse grey RAL 7005
  • Exterior plastic parts color: Telegrey RAL 7045
  • Plastic bumper RAL 7045 (top / bottom)
  • Interior sheet metal parts color: White
  • Adjustable feet
  • Grid shelves
  • Interior partition grid color: White
  • Defrost water automatically heated
  • Power and lighting cord
  • Electronic temperature control with communication interface
  • Price rails
  • LED lighting hand rail

Customization

  • Exterior color (on request)
  • Castors (on request)
  • Dry shelves for non-refrigerated product presentation on top
  • Multiplexing kit (on request)

Dimensions

Visor® Q freezer Unit 188I CEG 188I G 218I G 258I G
Temperature [°C] -22…-24 -22…-24 -22…-24 -22…-24
Refrigerant R290 R290 R290 R290
Width [mm] 1850 1855 2105 2505
Depth [mm] 860 860 860 860
Height [mm] 815 890 890 890
Volume [l] 430 512 592 725
Total display area [m²] 1,00 1,00 1,20 1,46
Energy consumption** [kWh/d] 5,48 5,48 6,27 7,31
Average heat dissipation [W] 228 228 261 305
Temperature class* L1 L1 L1 L1
*At climate class 3 according to ISO 23953 | **Measured in accordance with the applicable EU delegated regulation
1 Energy Labels might change depending on cabinet configuration and are based on R290 plug-in refrigerant technology
Images shown may differ slightly from the product
