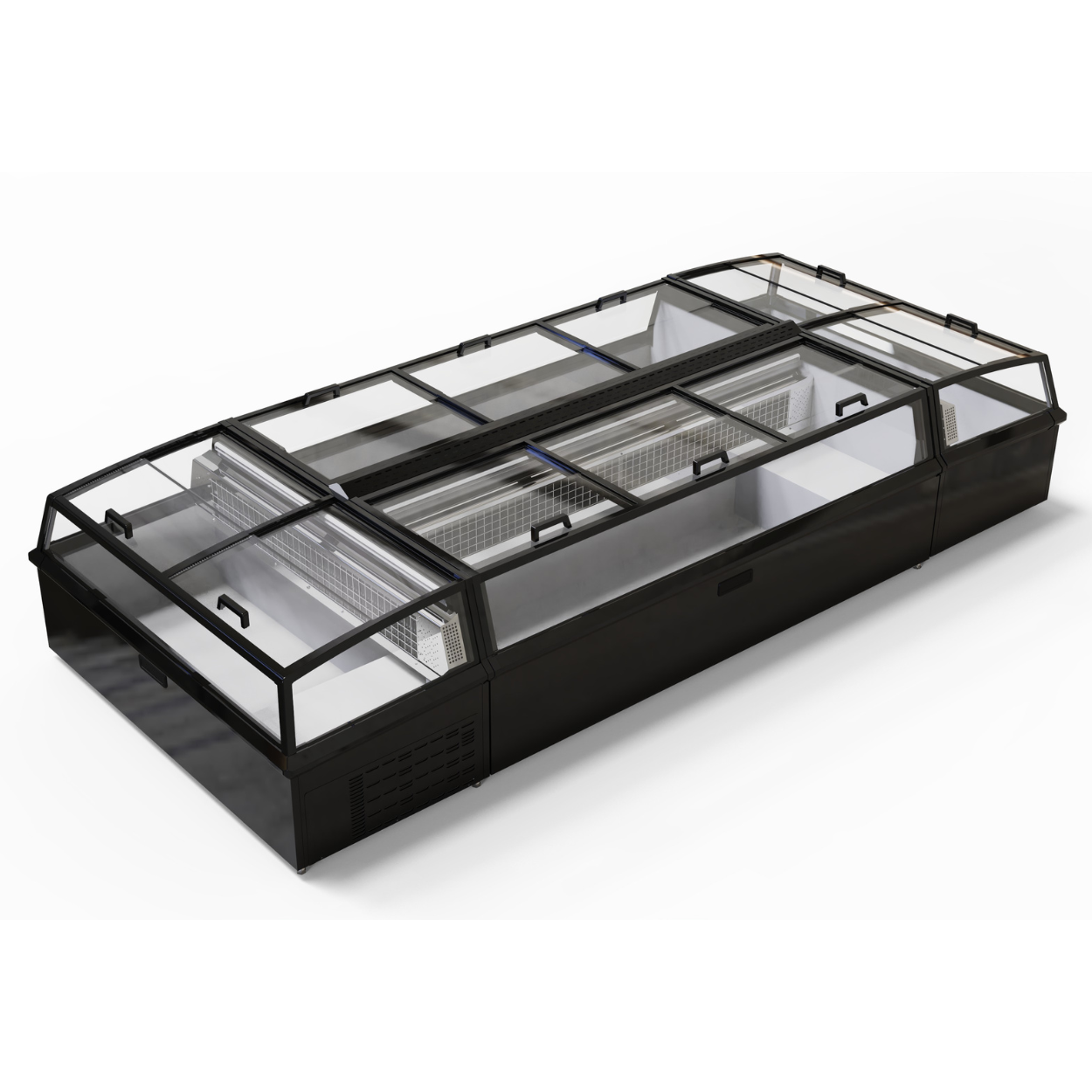

Visor® Q-T

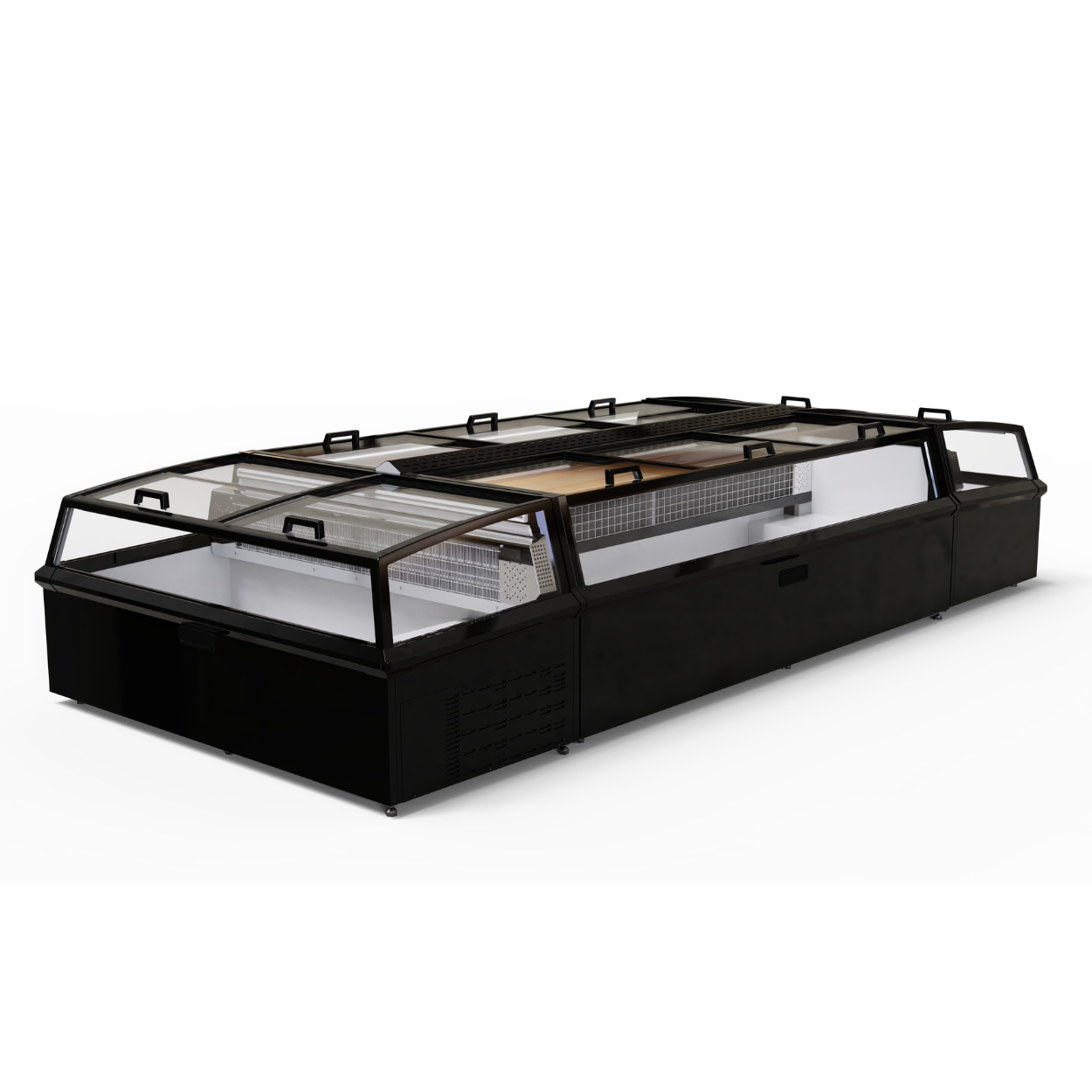

Visor® Q-T - Image 2

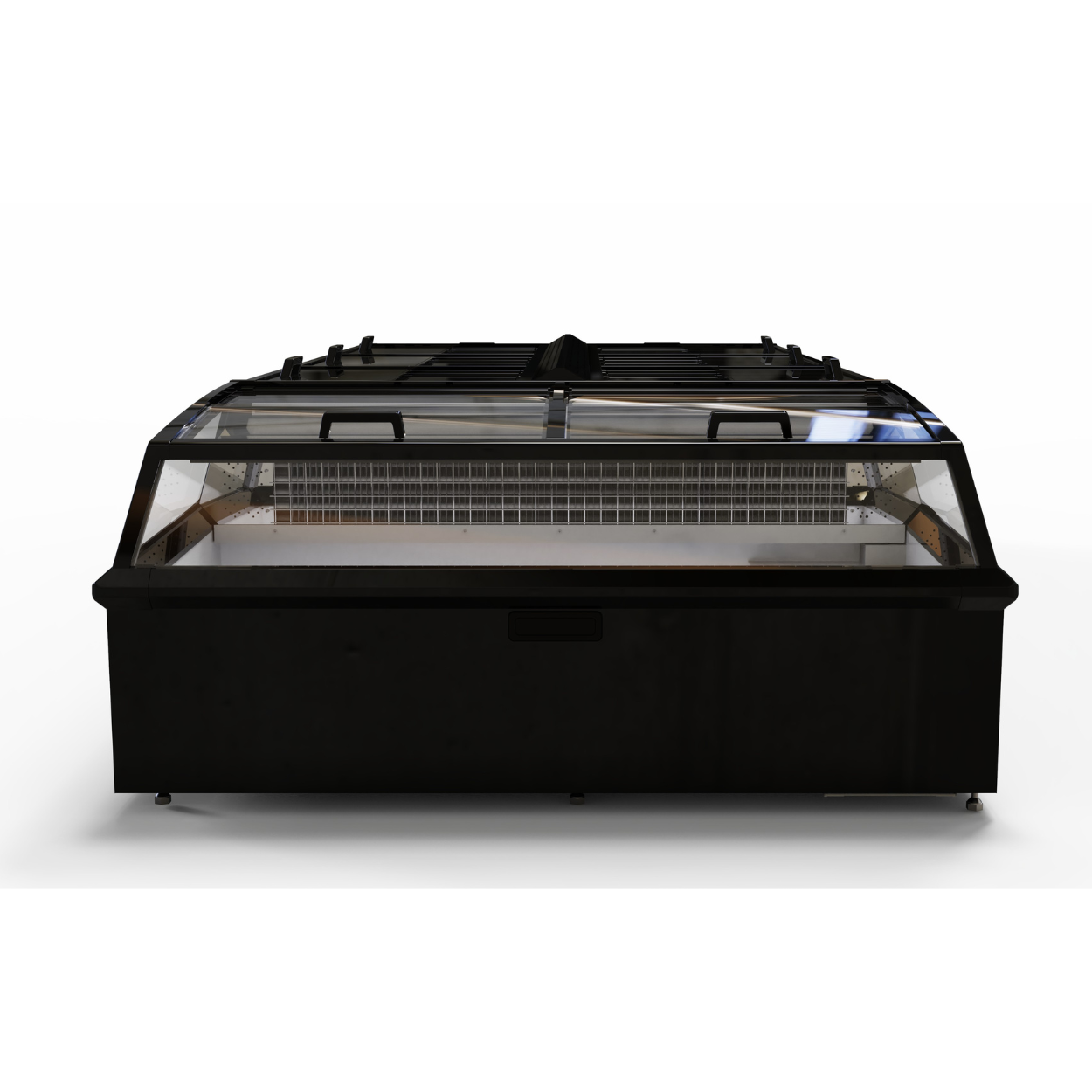

Visor® Q-T - Image 3

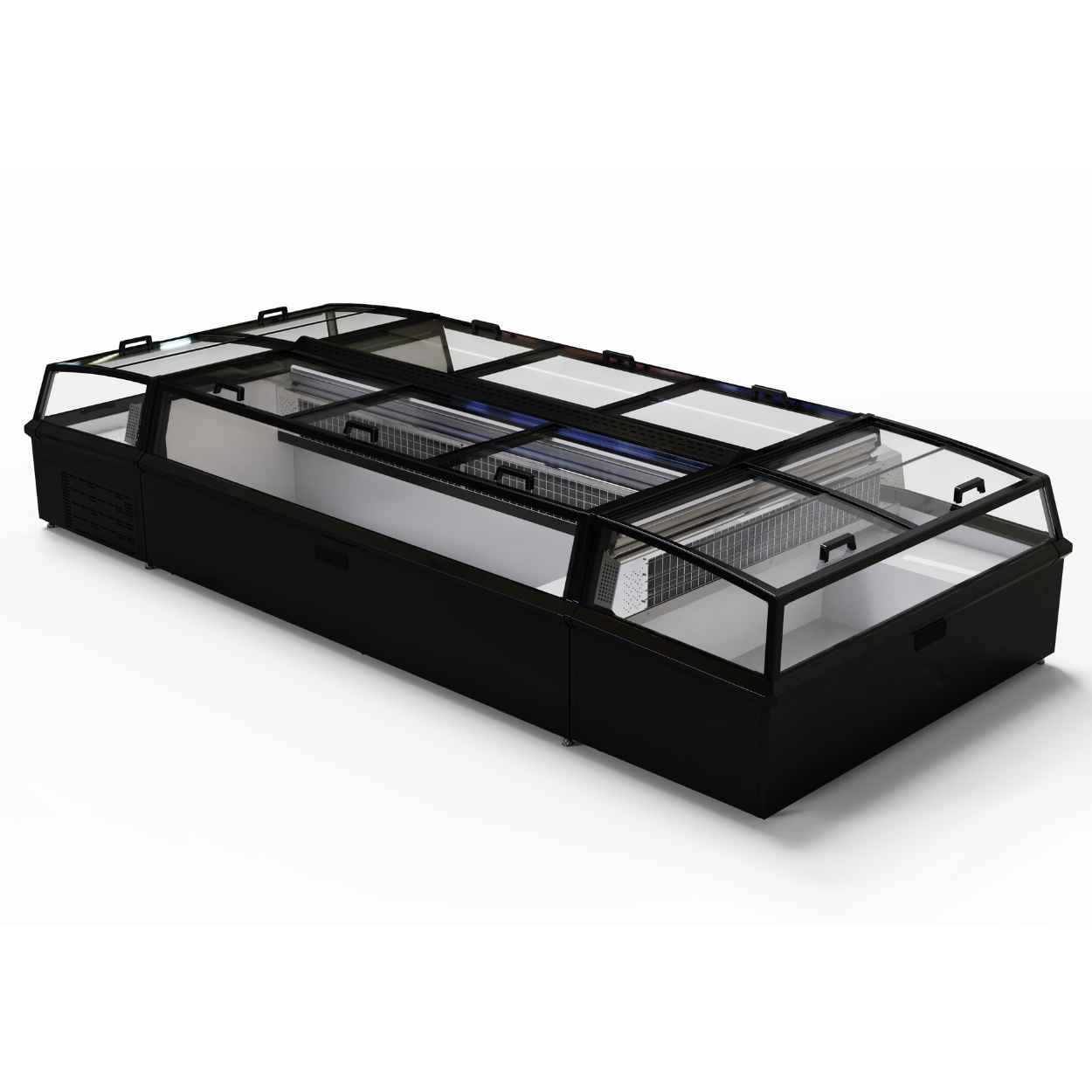

Visor® Q-T - Image 4

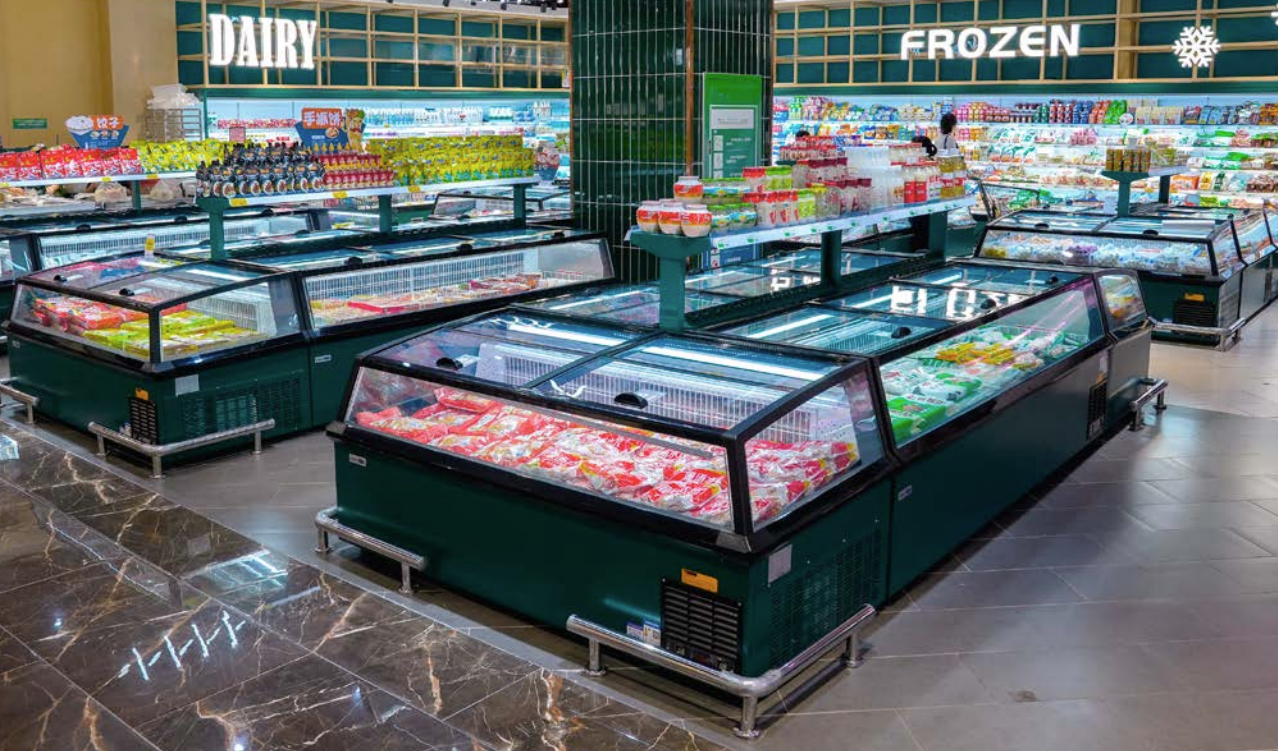

Visor® Q-T - Image 5

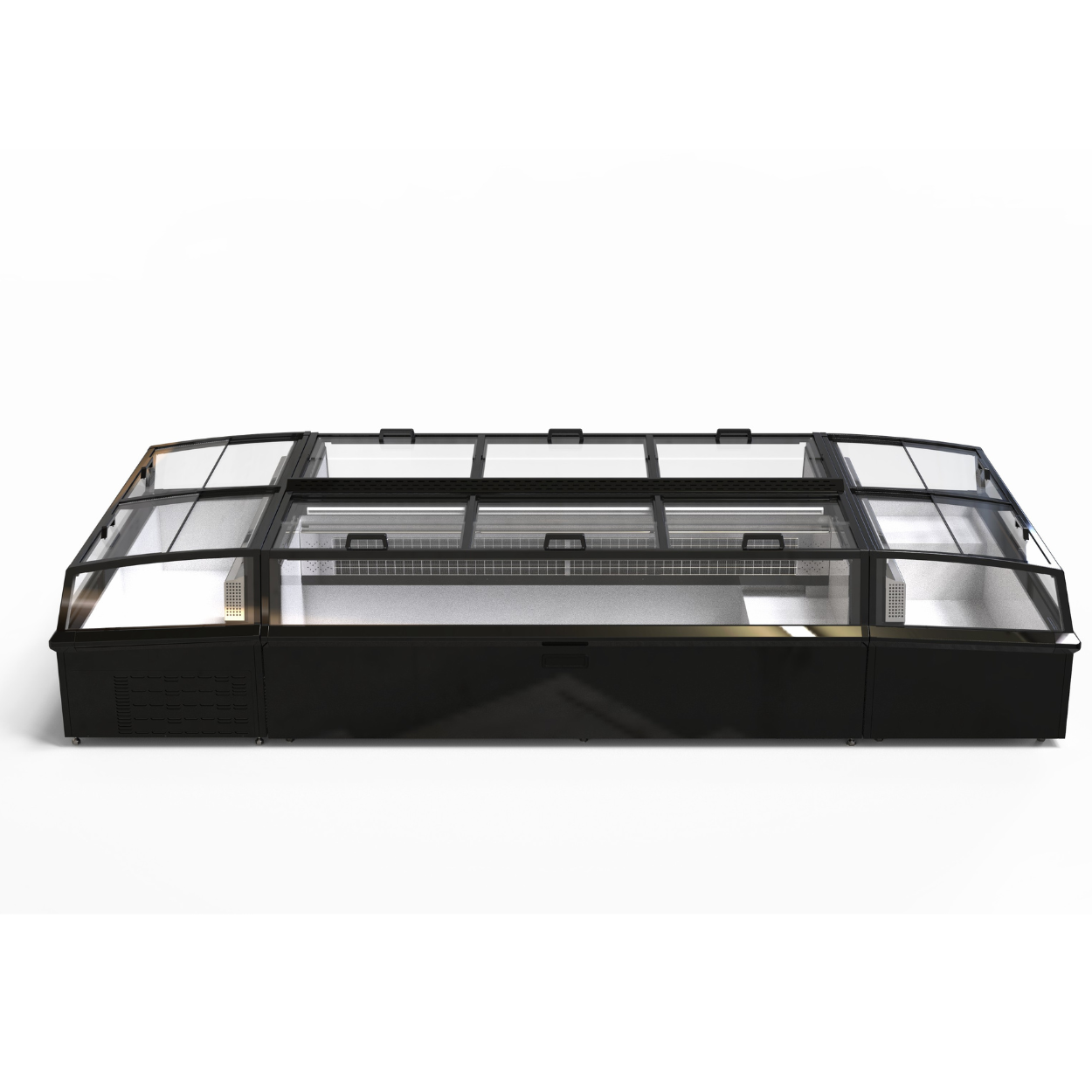

Visor® Q-T

Visor® Q-T

Transparent Plug-In Chest Freezer designed for Modern Retail

BENEFITS AT A GLANCE

  • Maximized ease and efficiency in installation as well as flexibility for store layout changes by Plug & Play design
  • Optimized energy cost at part load in actual store conditions by variable compressor speed drive
  • Easy access through push glass lids
  • Enhanced product presentation through elegant glass superstructure
  • Ideal frozen food and ice cream preservation by operating temperature below -18°C (L1 temperature class)
  • Eco friendly and future proof natural Propane refrigerant with GWP < 3

  • SYSTEM:

    Plug-in

  • TEMP. CLASS:

    L1

  • REFRIGERANT:

    R290

  • ENERGY LABEL:

A wide display compartment offering a perfect solution for modern retail.

Visor® Q-T, is ideally suited for frozen products. With it’s elegant glass superstructure Visor® Q-T offers maximum product visibility and optimized load volume at minimum footprint for a striking price.

Ideal dimensions and combination options from the island and wall-side program ensure a flexible and ideal fit for the given store layout.

KEY FEATURES

Standard Configuration

  • Exterior metal sheet colour: antracite-grey RAL 7016
  • Exterior plastic parts colour: grey
  • Interior sheet metal parts colour: white
  • Interior partition grid colour: white
  • Adjustable solid feet
  • LED 6500 K length wise beneath lid frame, front and back

Customization

  • Exterior metal sheet colour: multiple options per colour catalog
  • Exterior plastic parts colour: black
  • Interior sheet metal parts color: multiple options per color catalog
  • Interior partition grid colour: black
  • Heavy duty swivel castors
  • Dry shelves for non-refrigerated product presentation on top
  • Price rail options on request

Dimensions

Visor® Q-T2 Unit 1582 G 2282 G 2582 G 1882 CEG
Length [mm] 1505 2205 2505 1898
Width [mm] 886 886 886 881
Height [mm] 906 906 906 856
Volume [l] 288 473 551 328
Refrigerant R290 R290 R290 R290 R290
Temperature range [C] ≤-18 ≤-18 ≤-18 ≤-18
Total display area [m2] 0,7 1,05 1,22 0,88
Energy consumption** [kWh/d] 5,9 6,5 7,5 8,3
Average heat dissipation [W] 249 271 313 346
Temperature class L1* / Storage temp. -22/-24 °C ✔ ✔ ✔ ✔
*At climate class 3 according to ISO 23953 | ** Measured in accordance with the applicable EU delegated regulation
1 Energy Labels might change depending on cabinet configuration and are based on R290 plug-in refrigerant technology
2 All technical data includes LED lighting consumption where applicable
Images shown may differ slightly from the product
