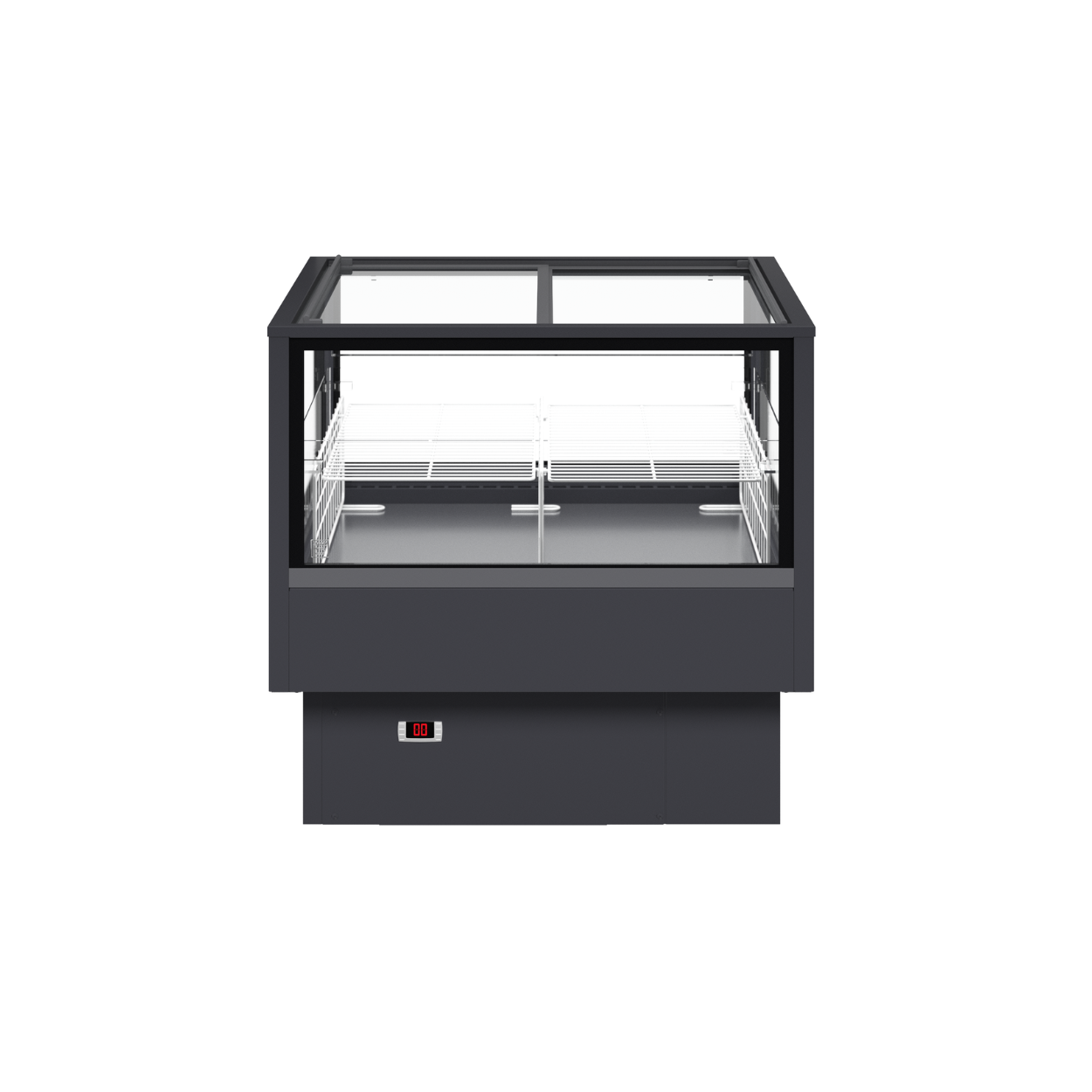

visiCUBE® PANO

visiCUBE® PANO

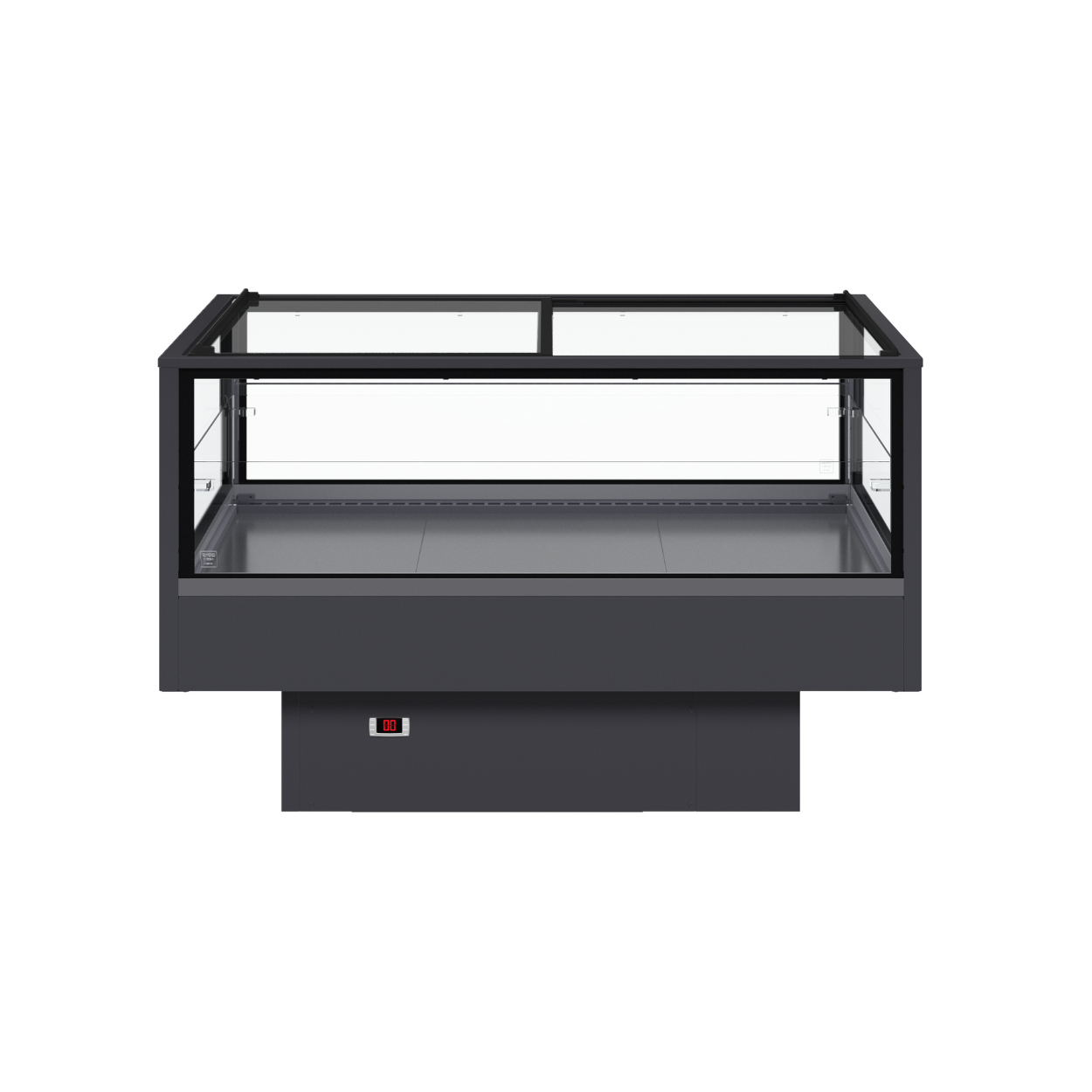

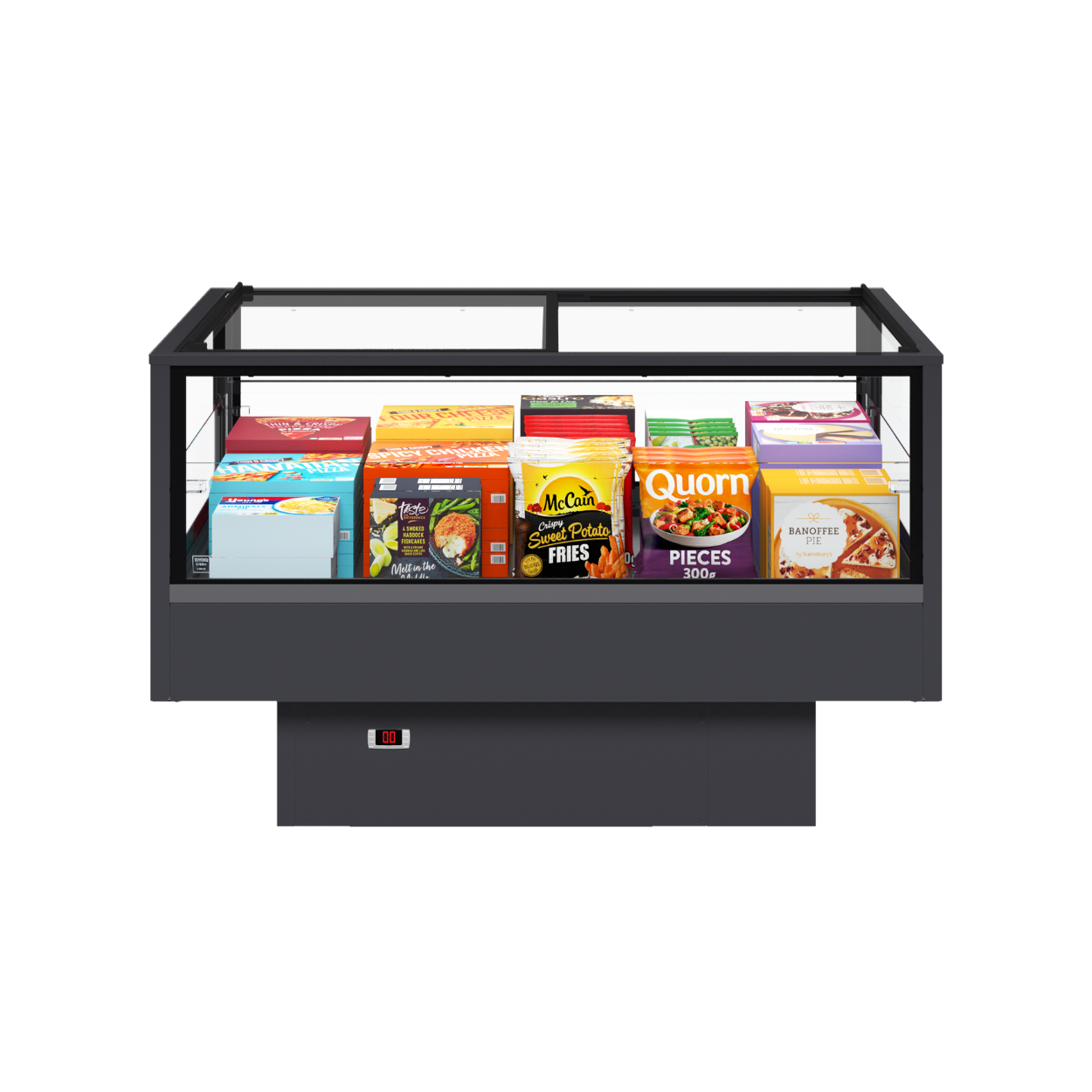

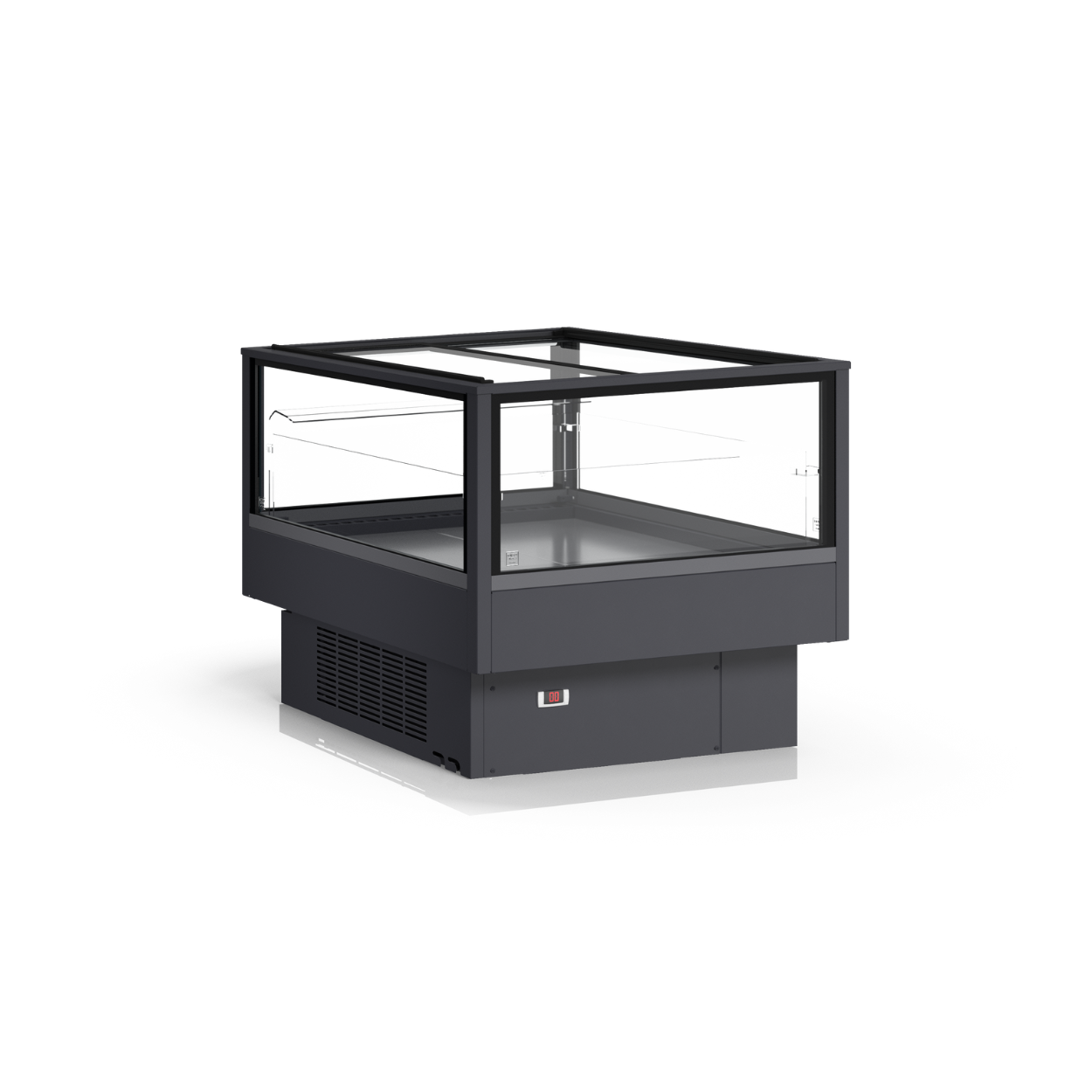

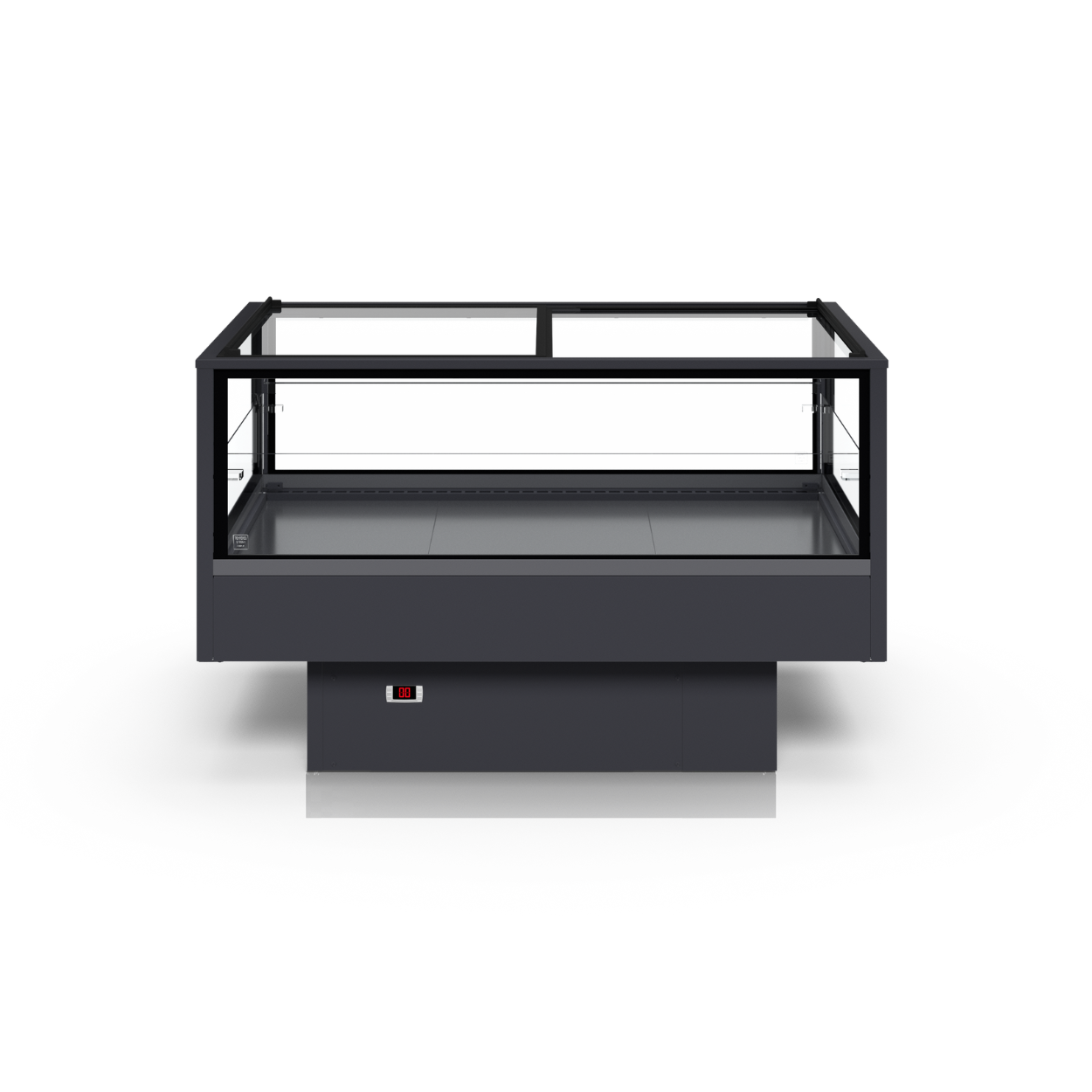

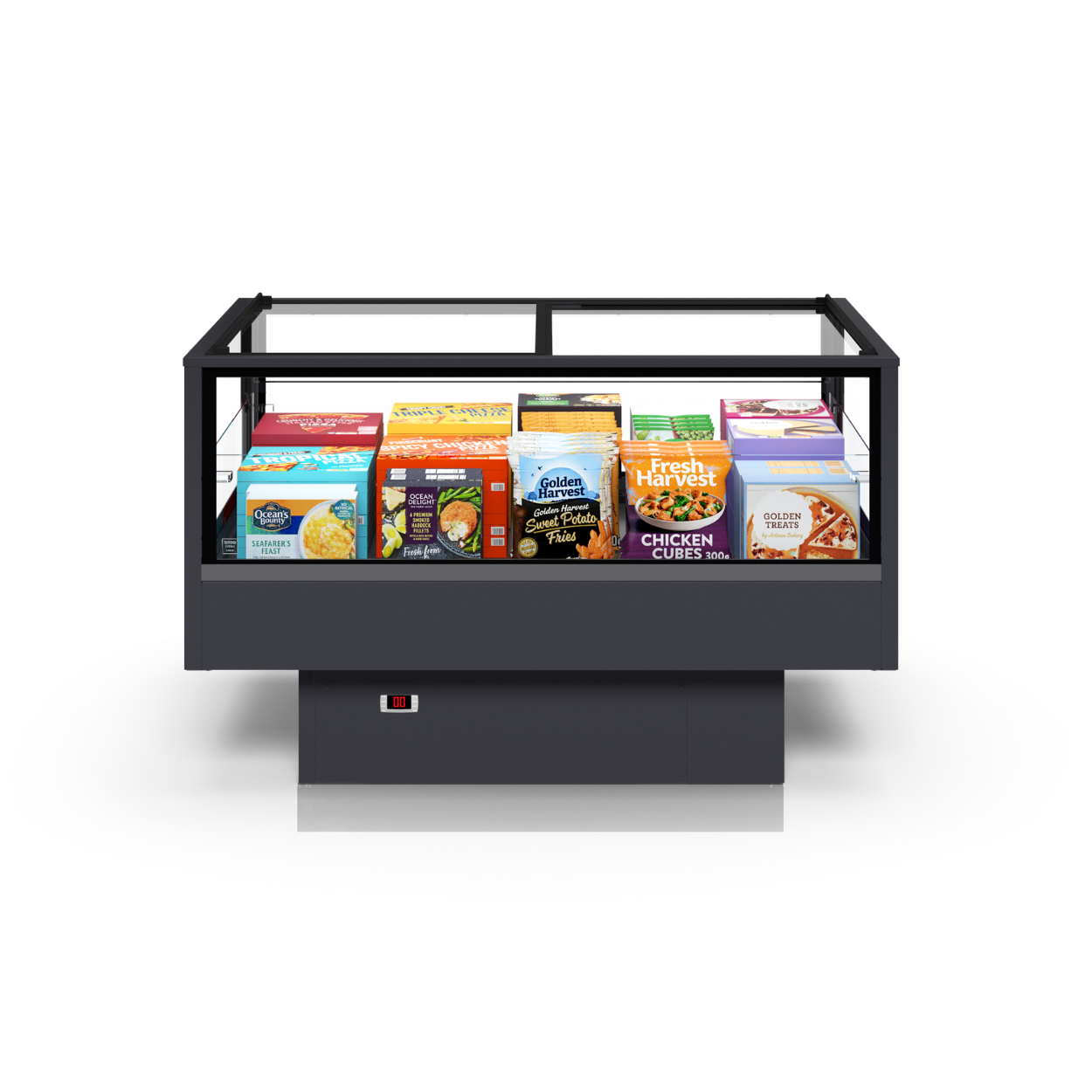

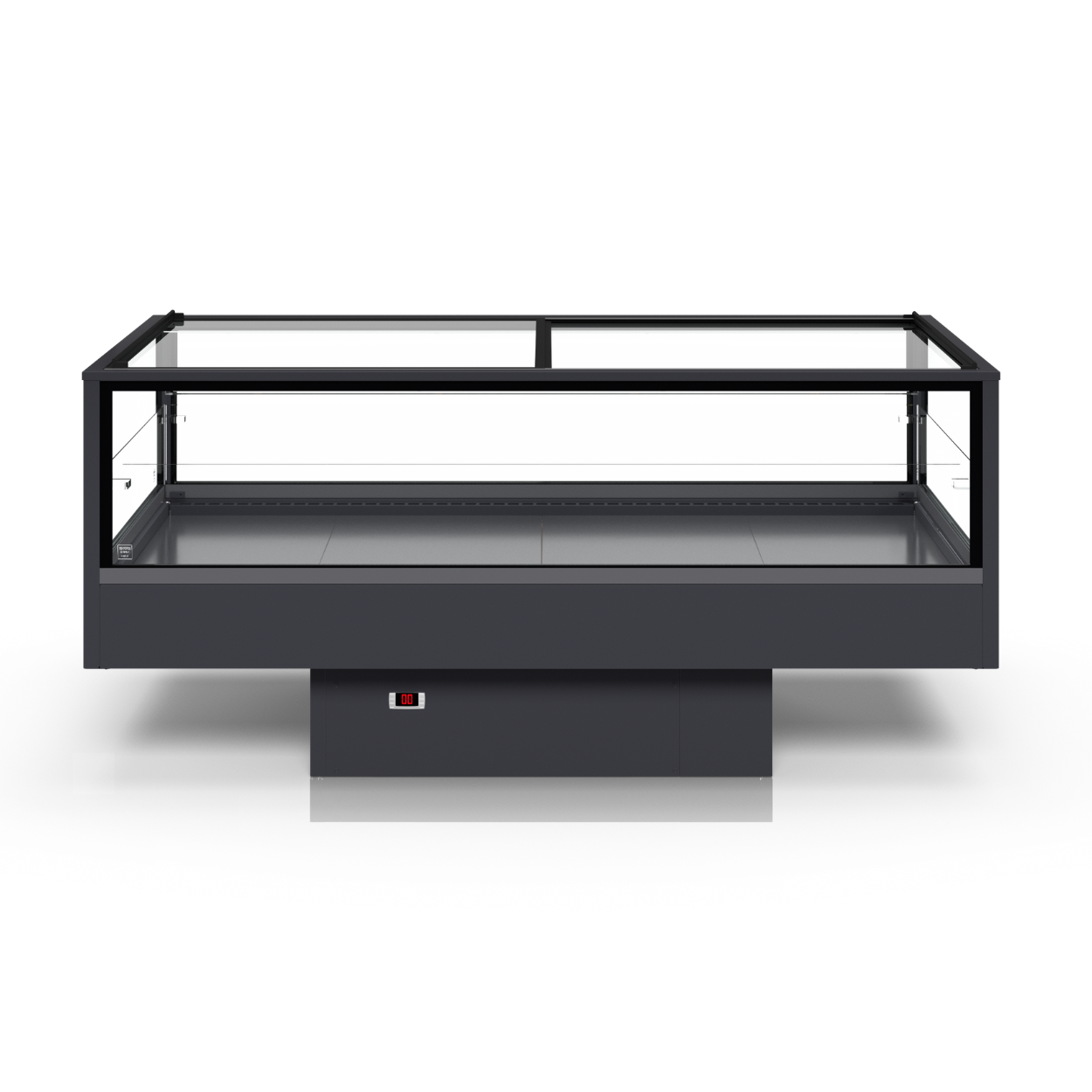

Highly transparent, switchable plug-in island for premium promotional sales

BENEFITS AT A GLANCE

  • High degree of flexibility in application and customization
  • Transparent modern cubic design for optimal floor space usage
  • Large number of paintable parts and extended selection of plastic colors
  • Wide range of combinations and optional accessories for the basic and upper segment
  • Easy maintenance for reduced service time and low life cycle costs
  • SYSTEM:

    Plug-in

  • TEMP. CLASS:

    M1 / M0
    L1

  • REFRIGERANT:

    R290

  • ENERGY LABEL:

A Transparent Step into the Future of Sales

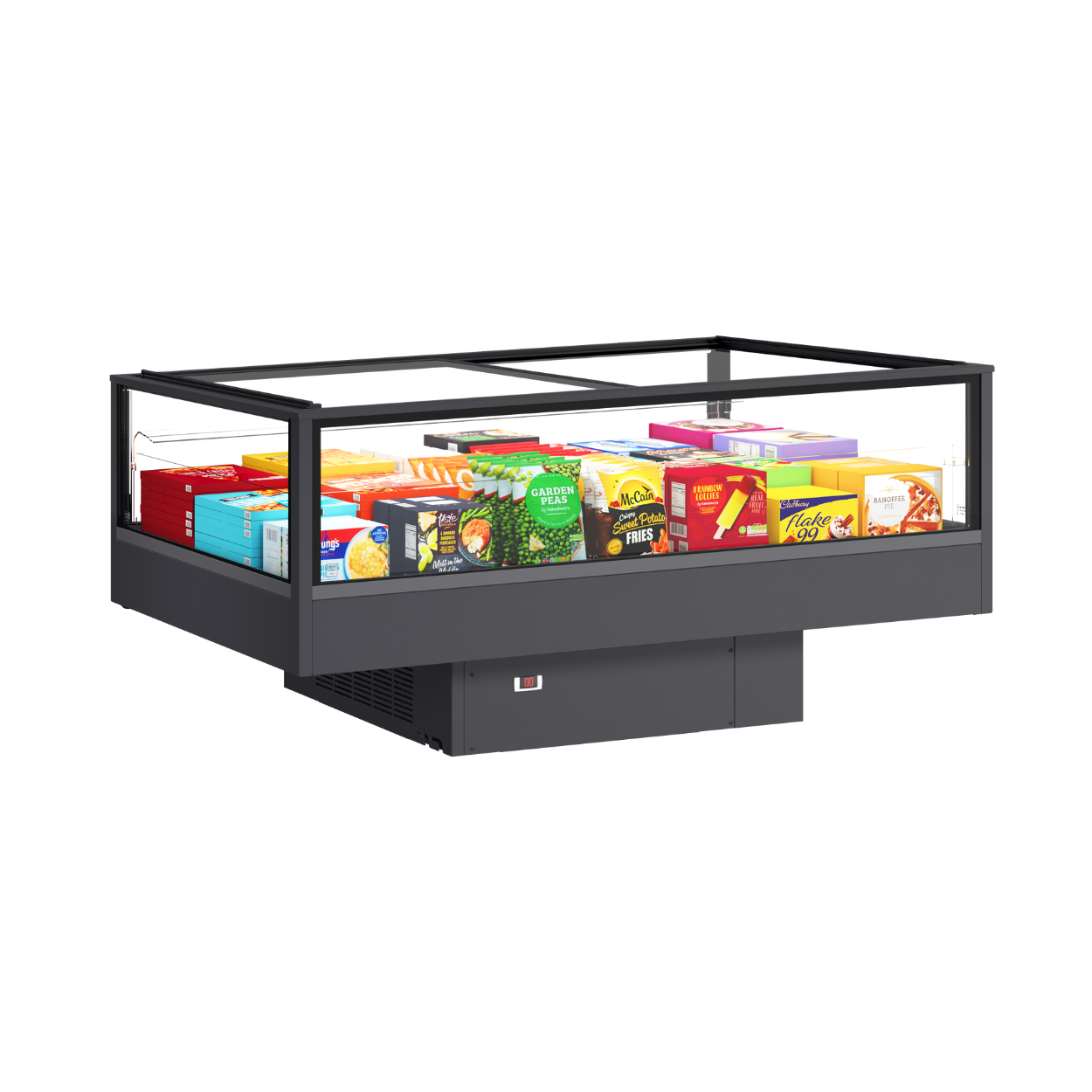

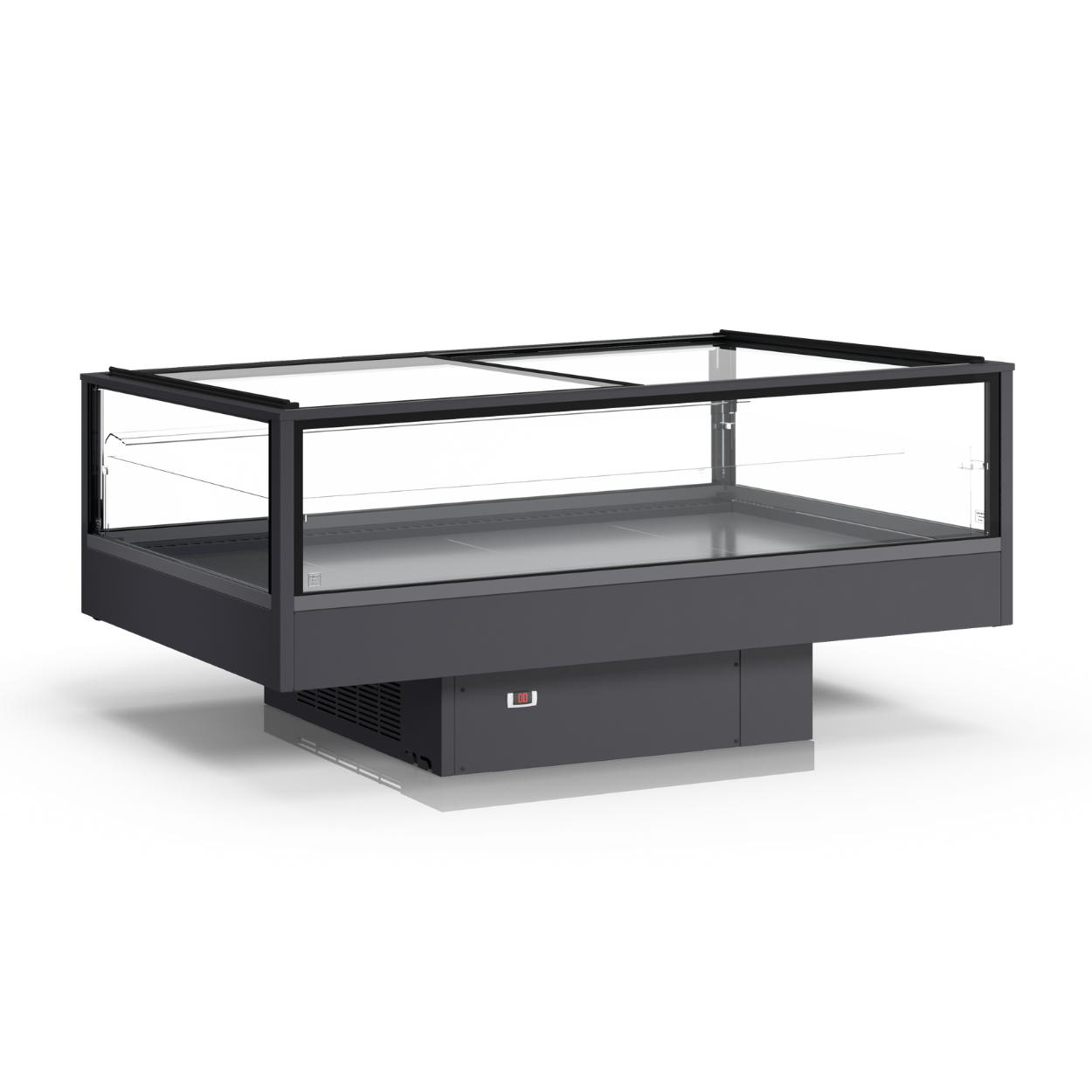

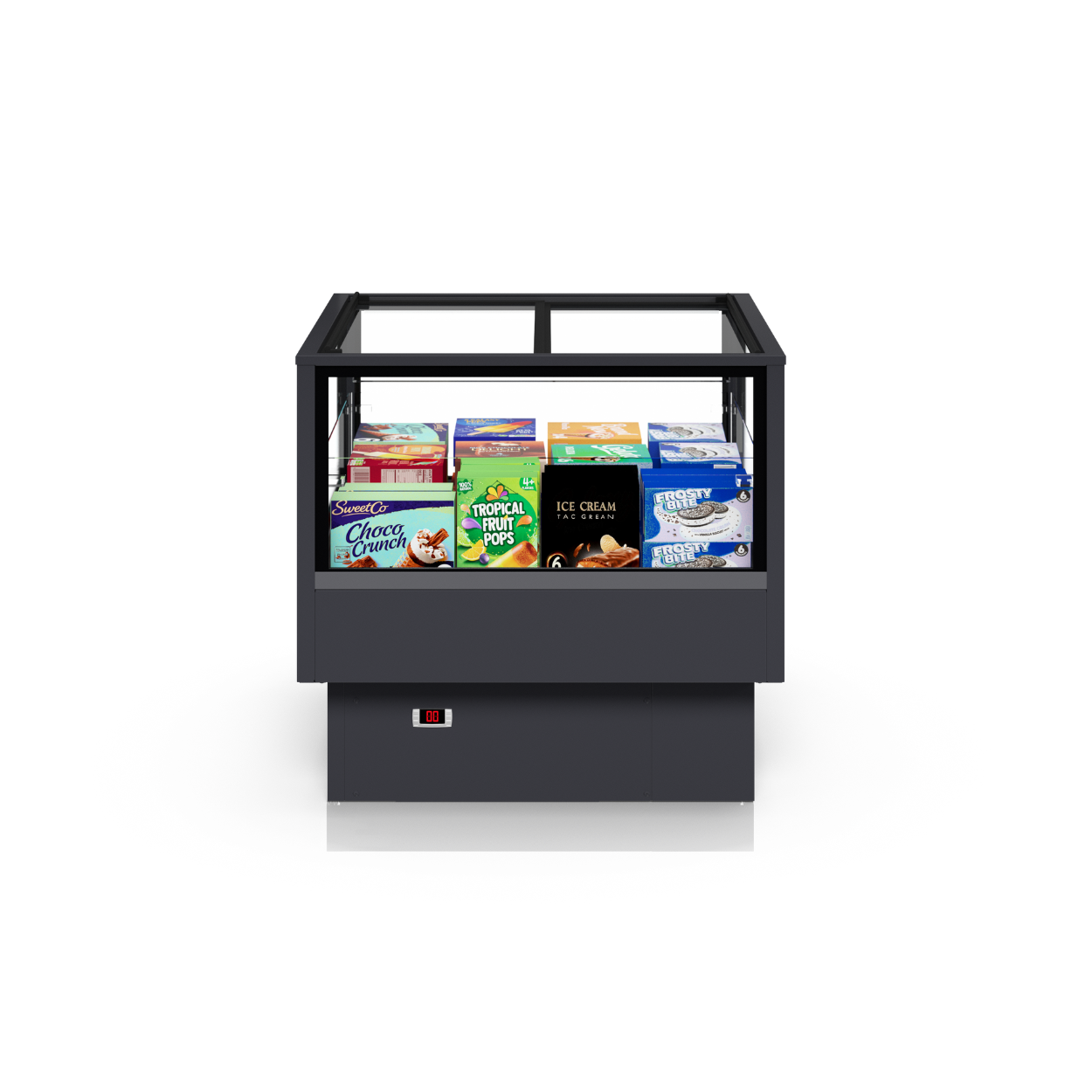

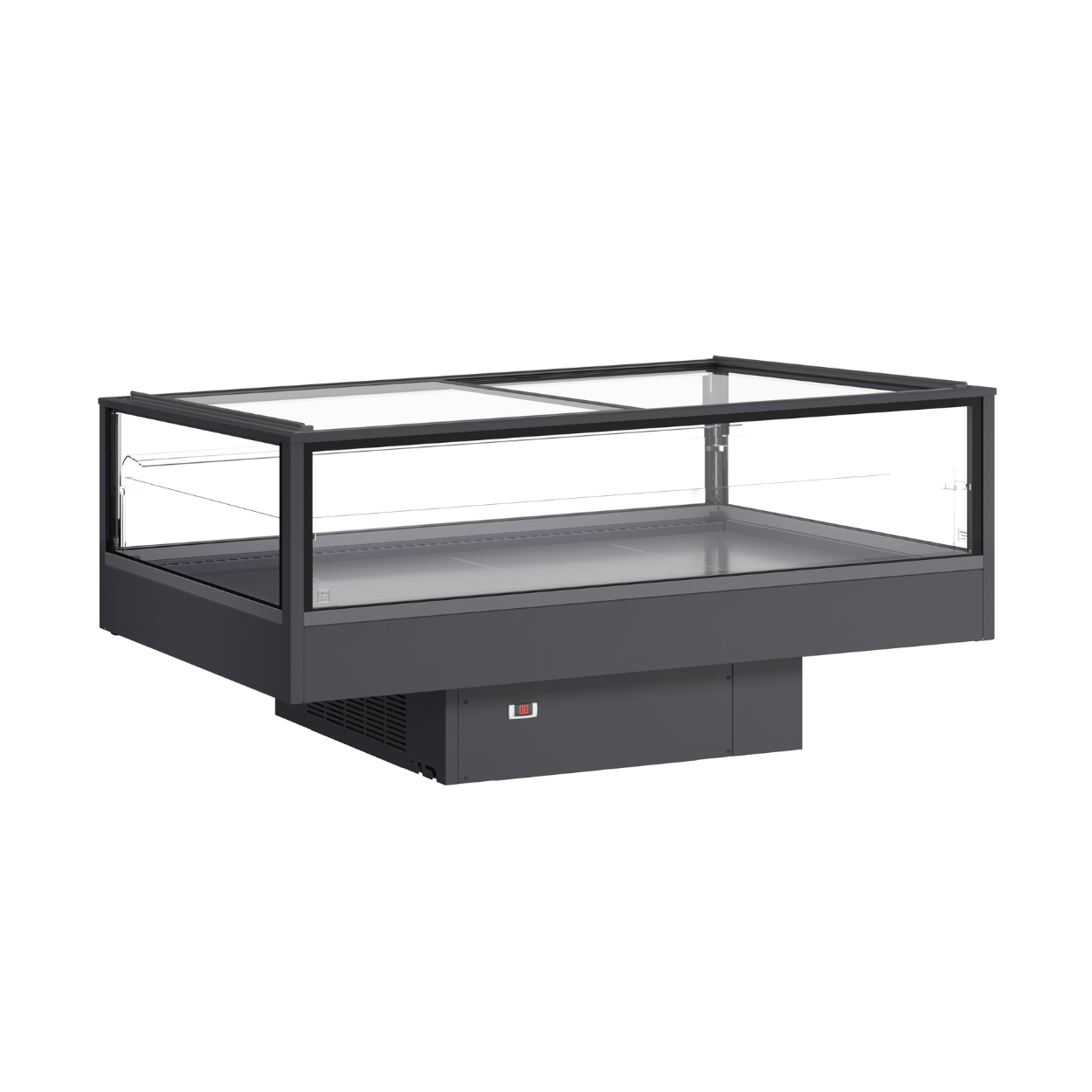

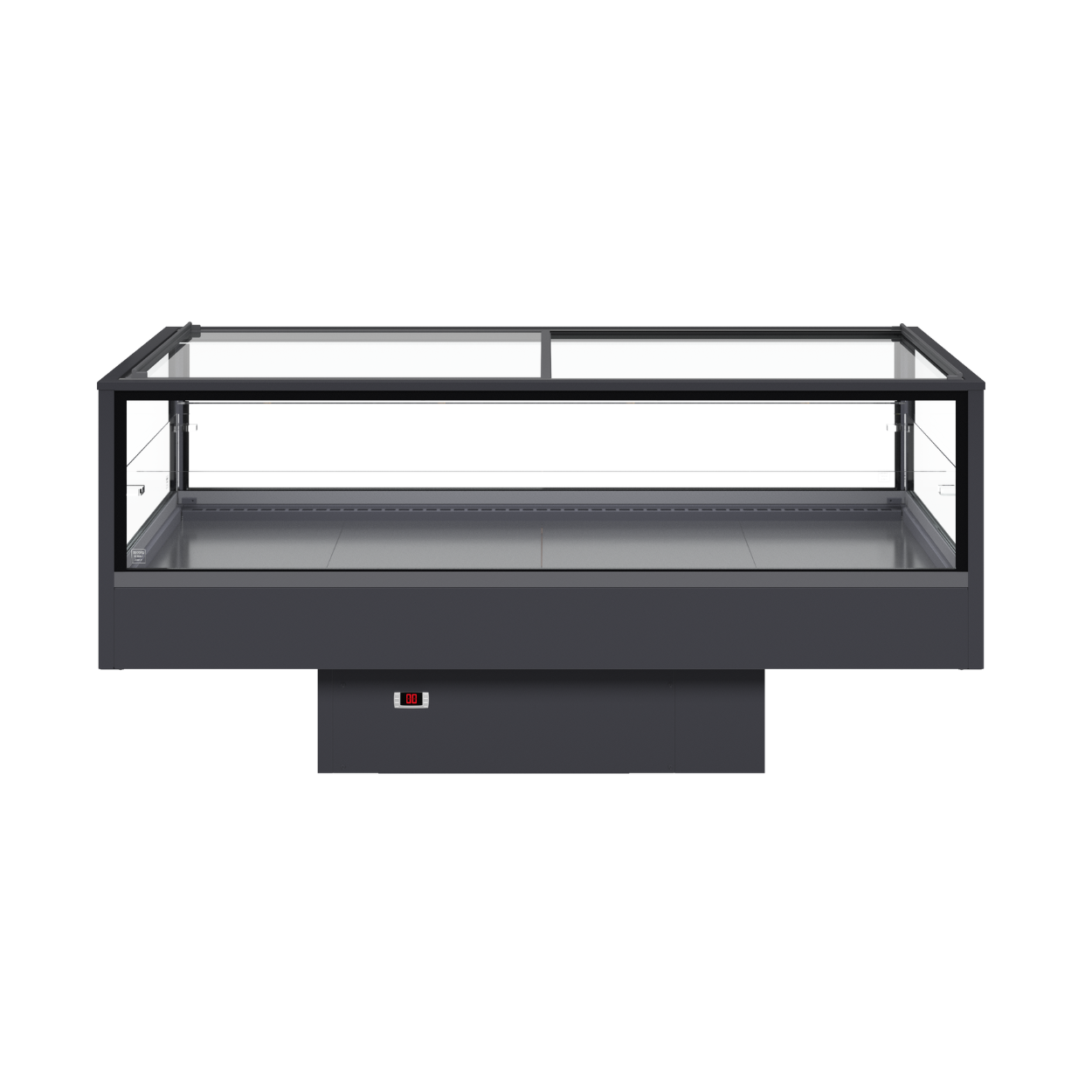

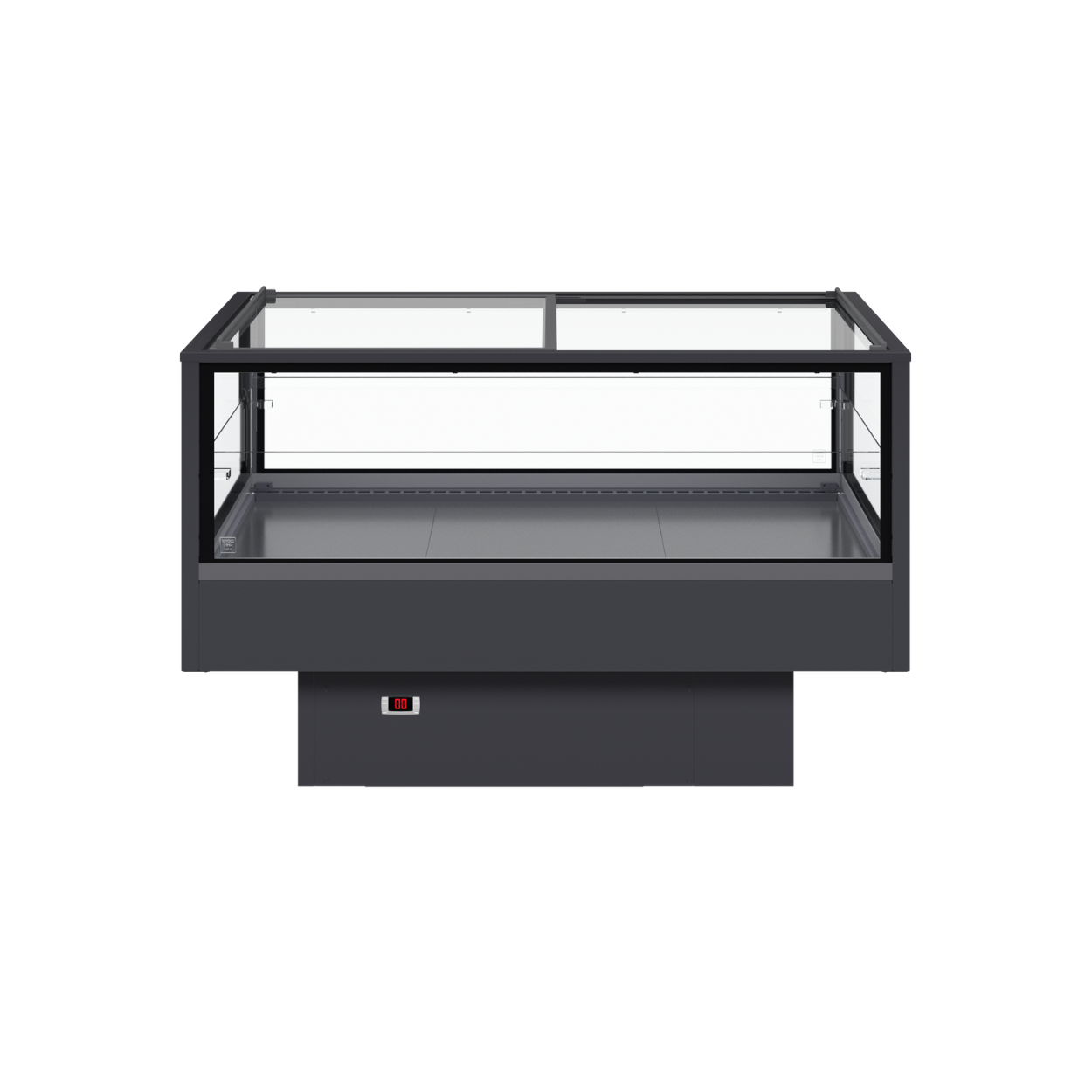

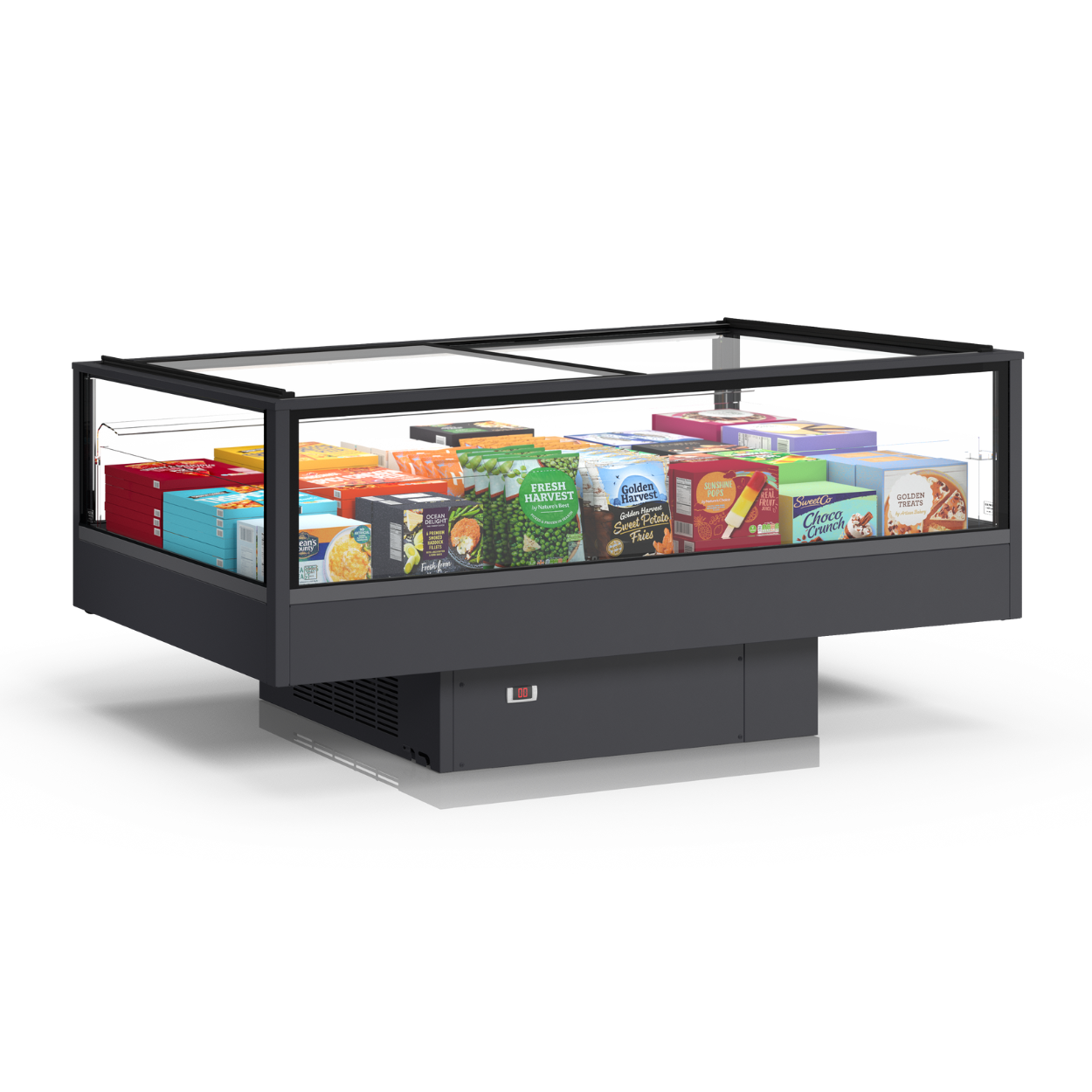

Introducing the highly transparent, modern plug-in island visiCUBE® PANO – an ideal solution for premium promotional sales. With its sleek, cubic design, this innovative display island offers optimal floor space usage, enhancing both visibility and accessibility. Perfectly tailored for high-end retail environments, it invites attention while maintaining a clean, professional appearance.

Built for adaptability, the visiCUBE® family boasts a high degree of flexibility in both application and customization. Featuring a large number of paintable parts and an extended selection of plastic colors, it enables retailers to tailor the island to their brand identity. Whether aiming for a minimalist aesthetic or a bold visual statement, this plug-in island adjusts effortlessly to your vision.

Functionality meets sophistication with a wide range of combinations and optional accessories, suitable for both the basic and upper market segments. Beyond aesthetics, the island is designed for easy maintenance, reducing service time and keeping life cycle costs low. This means more uptime, lower overhead, and a consistently polished presentation.

KEY FEATURES

Standard Configuration

  • Sliding glass lids (stepped profile)
  • Triple layer glass panels all around
  • Internal and external panels galvanized steel with hard-wearing powder-coated finish, inside in Signal White, outside in Nimbus Grey and plastic parts in Graphite Grey
  • Low feet
  • Temperature-assured forced-air cooling
  • Automatic defrost with drip water evaporation
  • Electronic control with integrated temperature display
  • Natural refrigerant R290

Customization

  • Sliding glass lids (E profile)
  • Smart LED, handrail lighting, light color Neutral White 4000K, Cool White 5700K, Fresh red
  • Scanner price rail, 40 or 60 mm

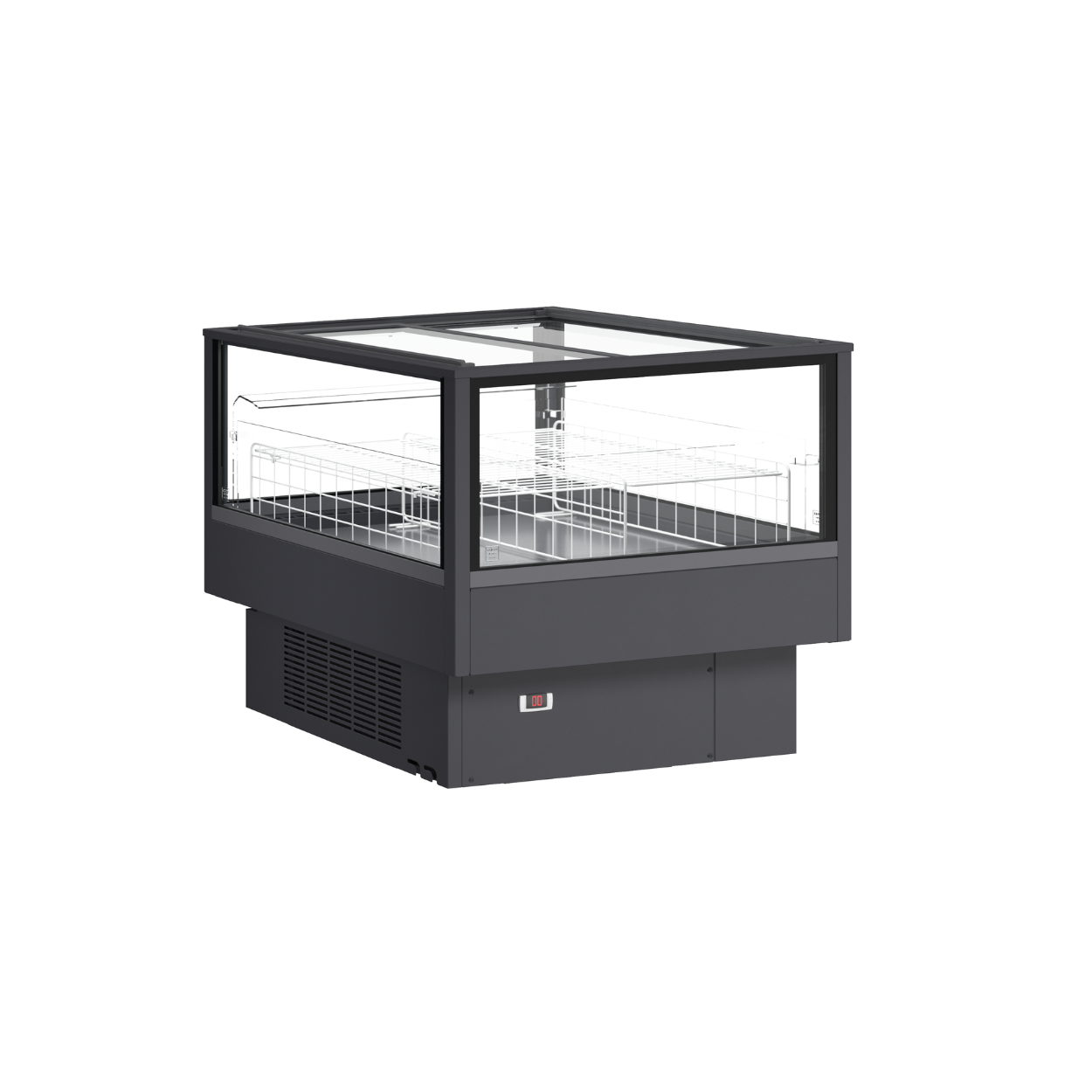

  • Height adjustable wire shelves
  • Wire divider, front-back
  • Product dividers
  • Bottom bumper all around, plastic or stainless steel
  • Wooden cladding with or without stainless steel bumper
  • Extended cabinet feet (90 mm) with or without bottom plinth panel all around
  • Castors, 2 rotating and 2 covered wheels or 4 rotating wheels (90 mm) incl. brakes
  • Connectivity options to various store gateways
  • Easy condenser access
  • Condenser filter
  • Additional temperature display
  • Separate power cable for lighting
  • Country specific mains cable

Dimensions

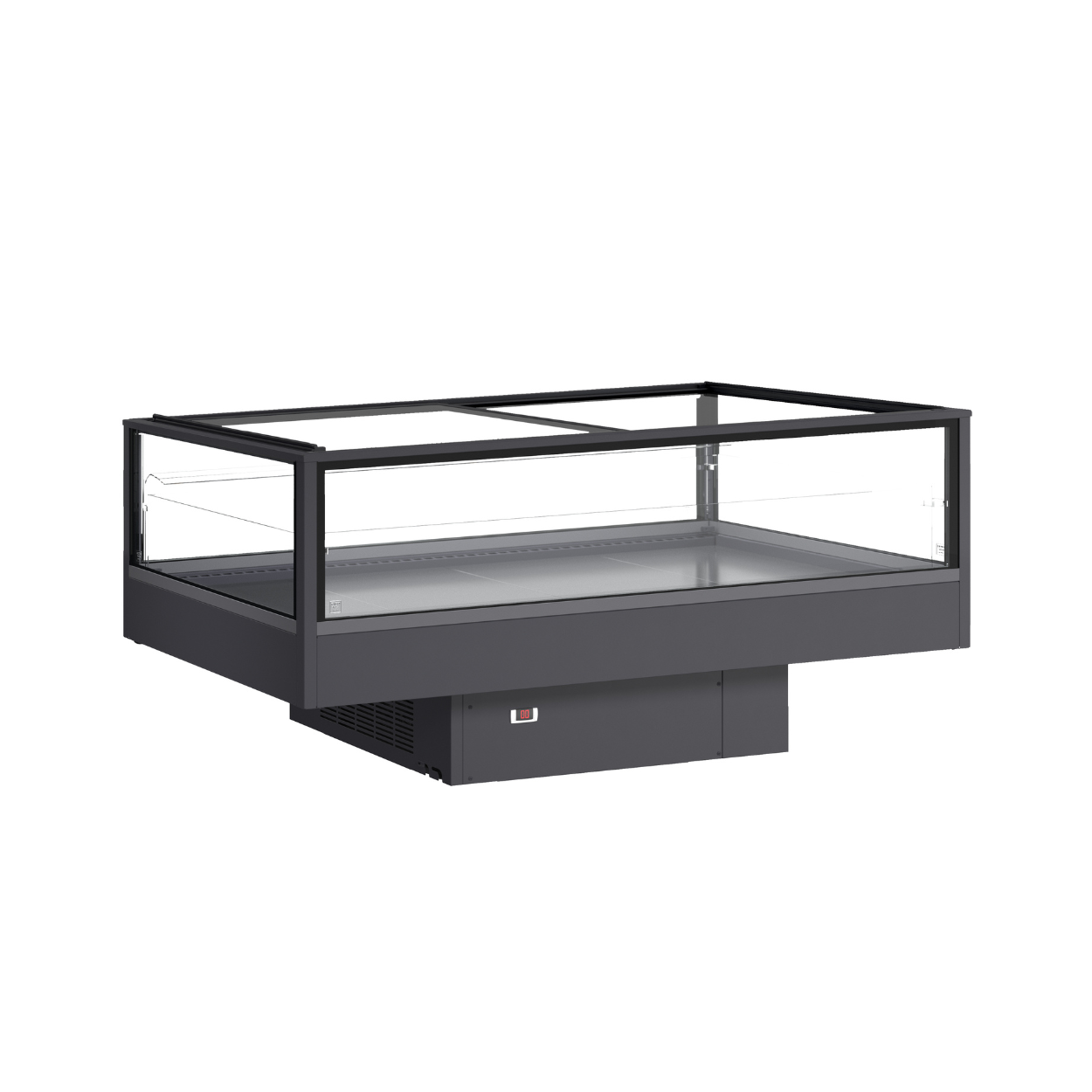

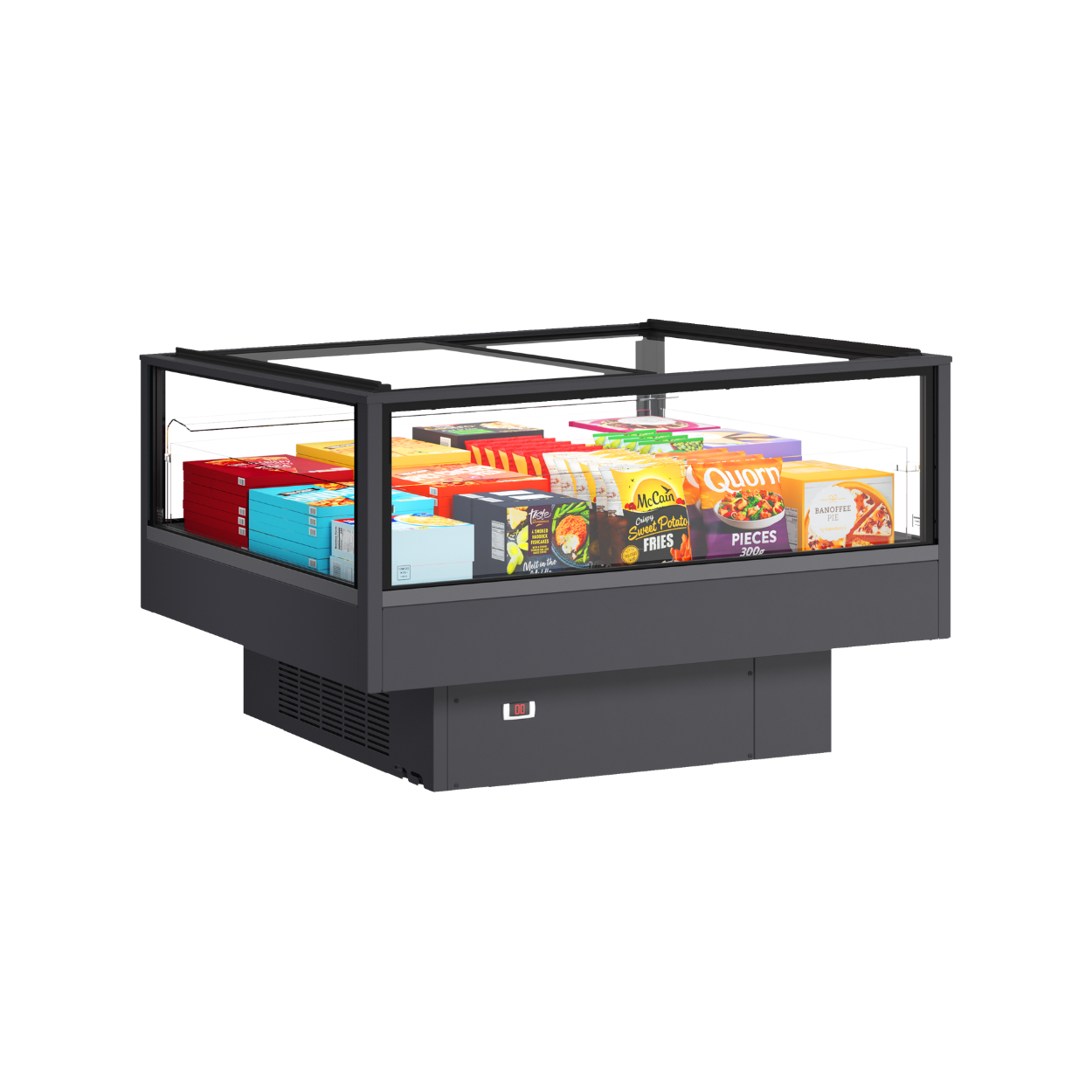

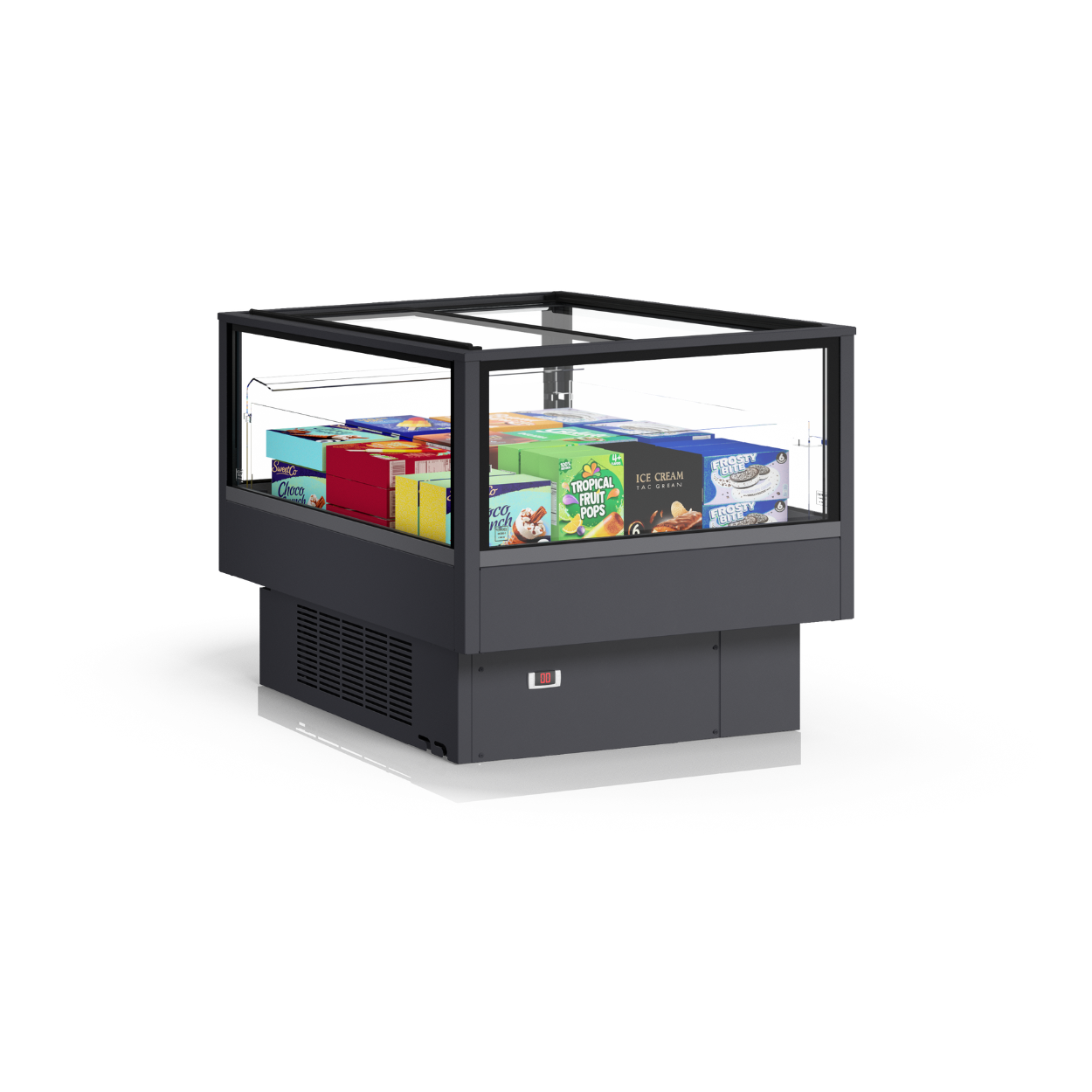

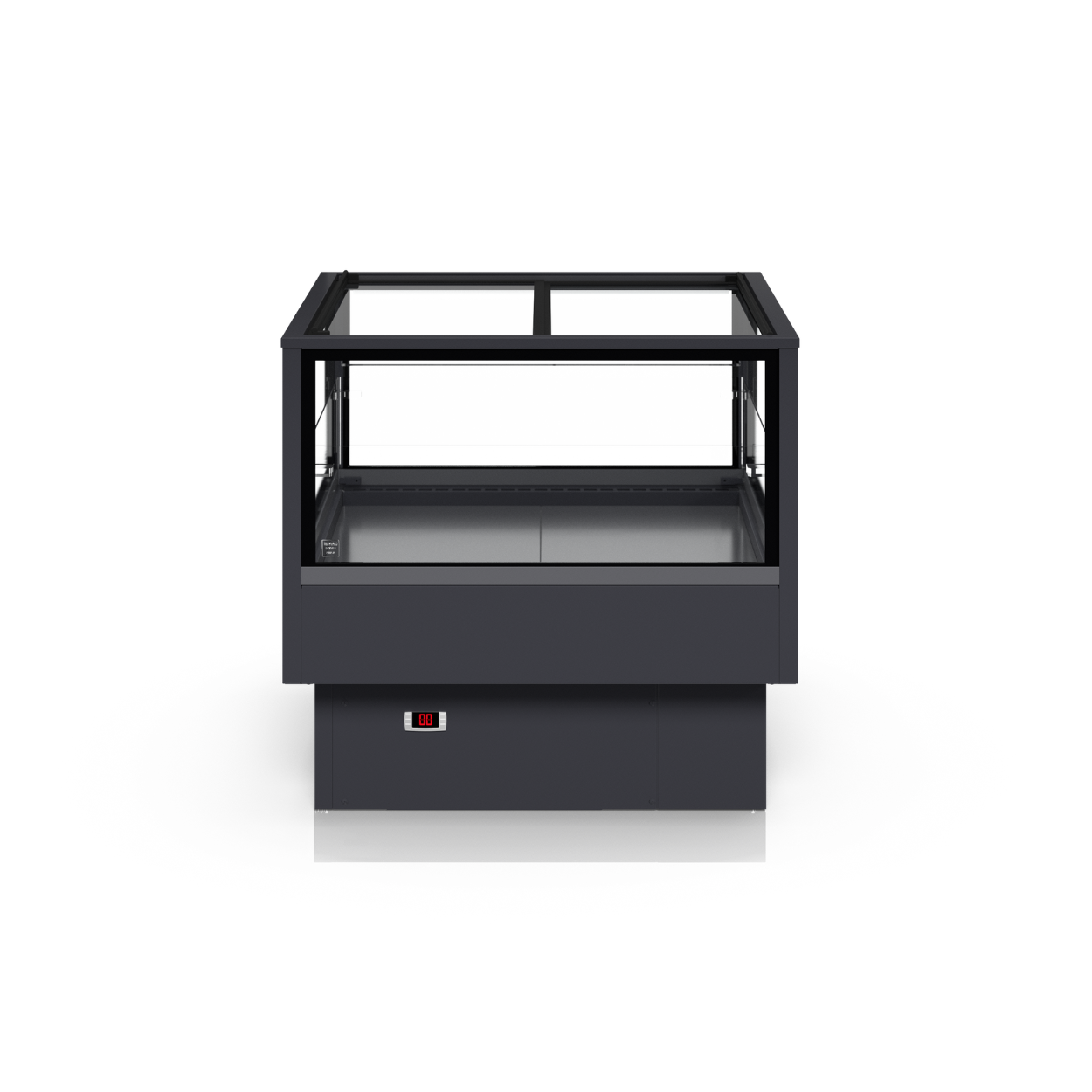

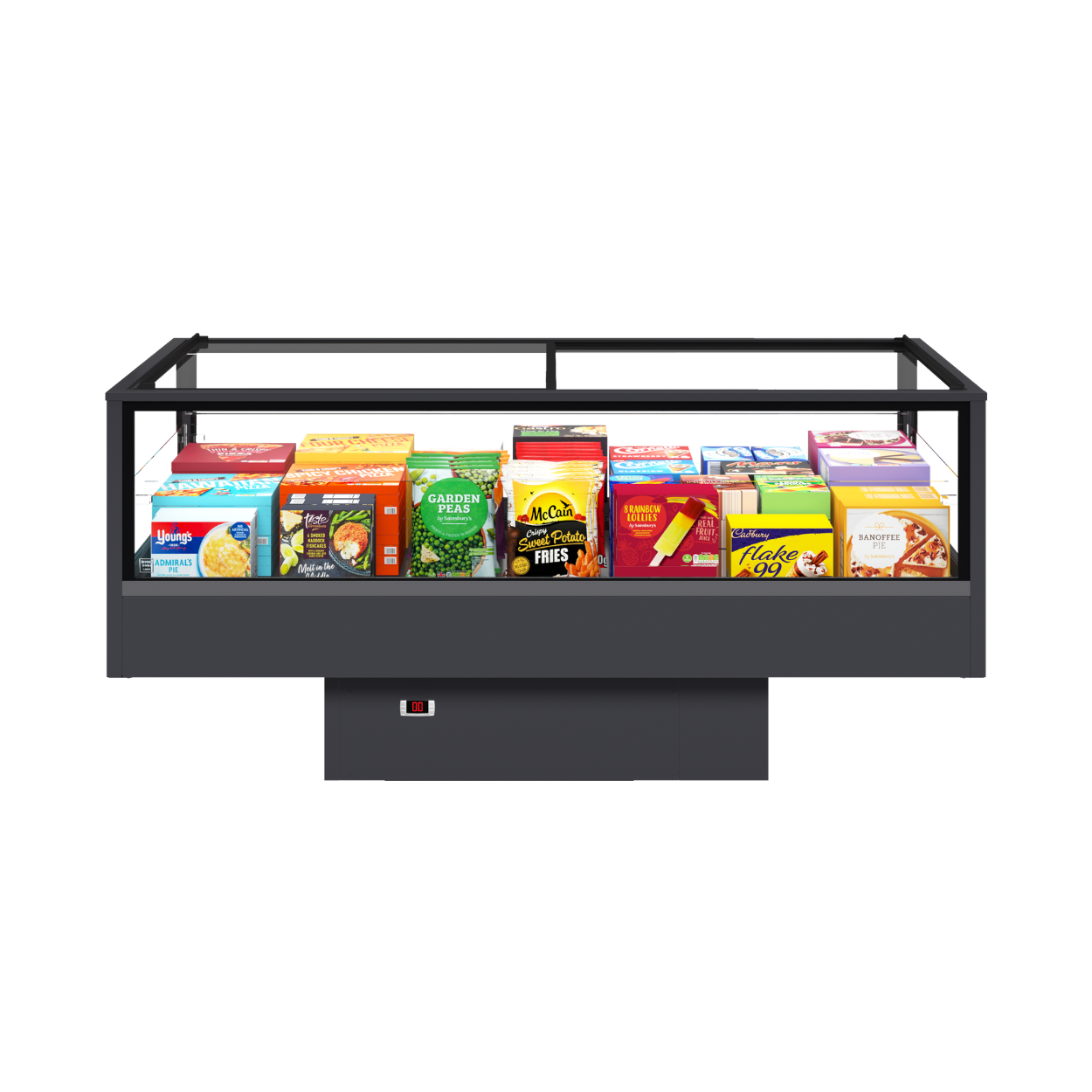

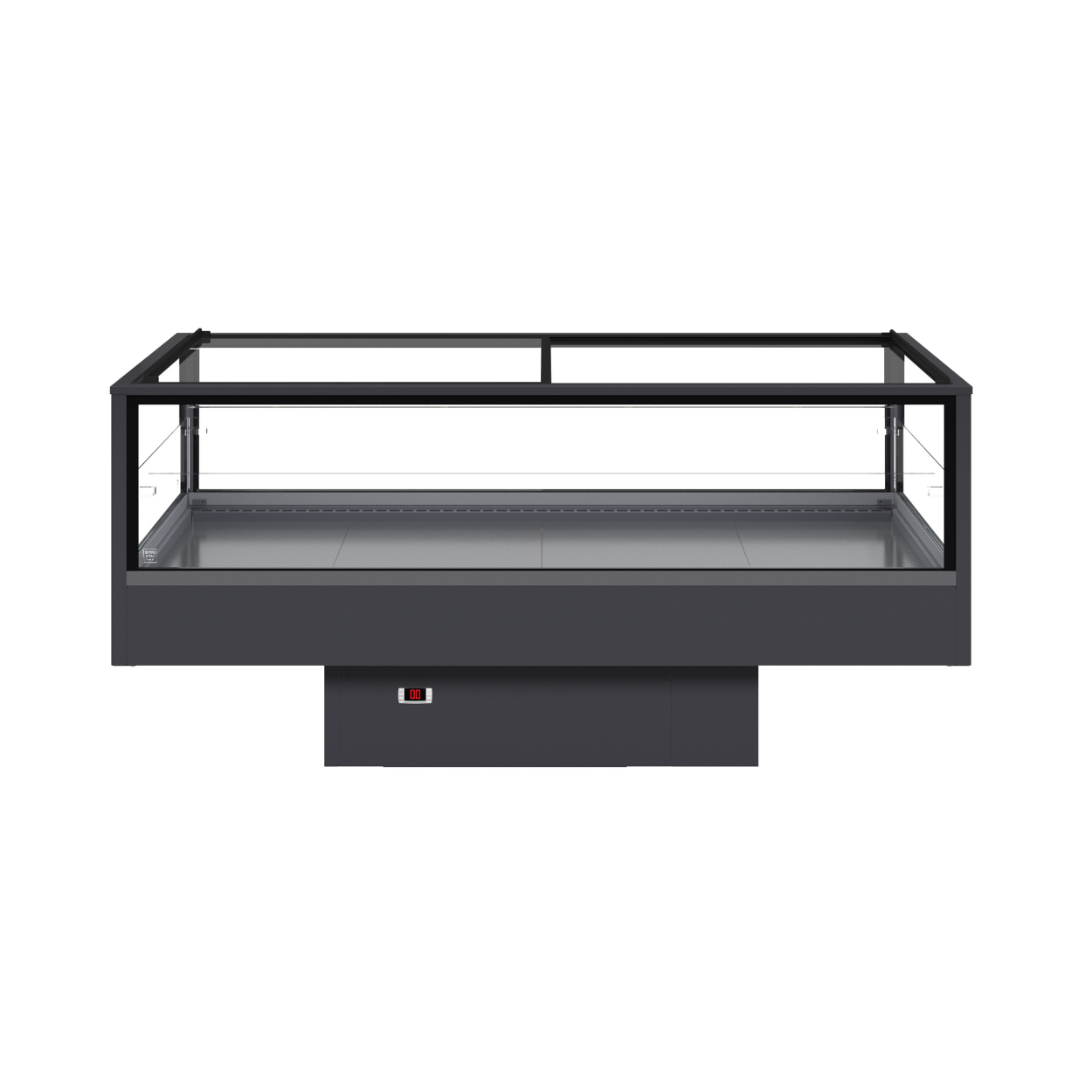

visiCUBE® PANO switchable2 Unit 100 150 200
Temperature [°C] -1…+1 / -2…0
-22…-24
-1…+1 / -2…0
-22…-24
-1…+1 / -2…0
-22…-24
Refrigerant R290 R290 R290
Width [mm] 945 1445 1945
Depth  [mm] 940 940 940
Height (without castors) [mm] 910 910 910
Volume (L1 / M1) [l] 166 265 364
Total display area [m²] 1,29 1,87 2,46
Energy consumption**
Freezer mode (L1)
Chiller mode (M1 / M0)
[kWh/d] 7,69
4,46 / 4,62
11,29
6,87 / 7,29
13,56
7,87 / 8,19
Average heat dissipation
Freezer mode (L1)
Chiller mode (M1 / M0)
[W] 320
186 / 193
470
286 / 304
565
327 / 341
Temperature class* M1 / M0
L1
M1 / M0
L1
M1 / M0
L1
*At climate class 3 according to ISO 23953 | **Measured in accordance with the applicable EU delegated regulation
1 Energy Labels might change depending on cabinet configuration and are based on R290 plug-in refrigerant technology
2 All technical data includes LED lighting consumption where applicable
